ASME SA213 TP316L Stainless Steel Tube Bundle Heat Exchanger
Leave a message
ASME SA213 TP316L stainless steel tube bundle heat exchanger parts are components for heat exchangers made from a low-carbon austenitic stainless steel with high resistance to corrosion and heat, due to its chromium, nickel, and molybdenum content. The ASME SA213 standard specifies the requirements for these seamless tubes, which are then assembled into a tube bundle for various industrial applications like oil and gas processing, power generation, and chemical manufacturing.
The 316L shell-and-tube heat exchanger supplied by GNEE is a type of petrochemical equipment. It consists of a tube box, shell, and tube bundle, and is named for the U-shaped heat exchange tubes. A U-tube heat exchanger has a single tube sheet, to which both ends of the tubes are fixed. This heat exchanger features flexible tube bundle expansion and contraction, eliminating thermal stress caused by temperature differences between the shell and tube, and providing excellent thermal compensation. The doubled tube length allows for a larger flow diameter, high flow rates, and excellent heat transfer performance. It also boasts a strong load-bearing capacity. The tube bundle can be removed from the shell for easy maintenance and cleaning, resulting in a simple structure and low cost.

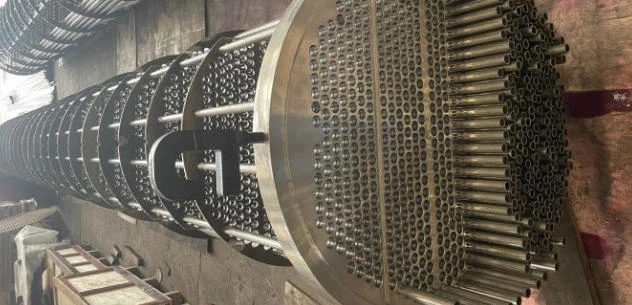

ASME SA213 TP316L Stainless Steel Tube Bundle Heat Exchanger
| GNEE Heat Exhanger Tube bundle parts- 081-E-0001 A/B/C | |||||||
| NO. | POS | DESPRITION | SIZE | MATERIAL | OVERLAY CLADDING | QUANTITY | |
| A | A--0 | Seamless TUBE | Ø19.05×2.11(min) x7315mm | ASME SA213 TP316L | / | 2490 | PCS |
| 11 | 3-1 | S.T. TUBE SHEET | Ø997×81mmT | SA350 LF2 CL1N | 8MM SS316L | 3 | PC |
| 12 | 3-2 | F.L. TUBE SHEET | Ø926×81mmT | SA350 LF2 CL1N | 8MM SS316L | 3 | PC |
| 17 | 4-5 | GASKET | Ø926×4mmT | SS316L+GRAPHITE | / | 9 | PCS |
We specialize in manufacturing Shell & Tube Heat Exchangers, Oil Coolers, Steam Heaters, Air Preheaters, Cooling Towers, Cooling Equipment, Condensers, Air Receivers, Blast Furnace Oil Coolers, Hot Air Generators, Industrial Heat Exchangers, Evaporators, Heat Exchanger Coils, Radiators, Pressure Vessels, Wound Finned Tubes/Coolers, Extruded Finned Tubes, Rectangular/Square finned tubes, and all other heat transfer products. Email: info@gneestainless.com
Some of the quality tests carried out by us includes:
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
