Stainless steel plate stockist, supplier, manufacturer



GNEE’s stainless steel plates cover a wide range of grades and specifications to meet the application needs of various industries. Our products include 304, 304L, 316, 316L, 321, 310S, 410, 420, 2205, 904L, and 630 stainless steel grades, manufactured in accordance with international standards such as ASTM, AISI, JIS, GB, DIN, and EN. We offer a broad thickness range, including stainless steel hot-rolled plates, cold-rolled plates, medium and thick plates, as well as customized sizes. Available surface finishes include 2B, BA, No.1, No.4, HL, and 8K mirror finish. Our stainless steel plates are widely used in food processing, medical equipment, chemical processing, marine engineering, architectural decoration, and machinery manufacturing industries.



All products can be supplied with third-party certifications such as ISO, SGS, and BV to ensure that chemical composition and mechanical properties fully comply with standard requirements. In addition, we provide value-added processing services including cutting, bending, leveling, slitting, welding, and surface treatment, offering customers a one-stop procurement solution that helps shorten delivery time and reduce overall purchasing costs.



Below are our best-selling stainless steel sheets:

First 1234567 Last

stainless steel plate specification




PRODUCT NAME STANDARD GRADE SIZE RANGE USAGE
Stainless Steel Plates ASME/ASTM SA/A240 TP304, TP304L, TP304H, TP310S, TP310H, TP316, TP316L, TP316Ti, TP321, TP321H, TP347, TP347H, TP410, TP430, S31254, S31803, S32205, S32750, N08800, N08810, N08825 Thickness: 0.3mm–200mm Pressure Vessel, Chemical Equipment, Heat Exchanger, Boiler, Structural Use
  ASME/ASTM SA/A480 Same as A240 Thickness: 0.3mm–200mm General Industrial Use
  EN 10088-2 1.4301, 1.4307, 1.4948, 1.4541, 1.4878, 1.4401, 1.4404, 1.4571, 1.4462 Thickness: 0.3mm–200mm Industrial, Structural, Food & Chemical Industry
  EN 10028-7 1.4301, 1.4307, 1.4404, 1.4571, 1.4541 Thickness: 3mm–150mm Pressure Vessel
  JIS G4304 SUS304, SUS304L, SUS316, SUS316L, SUS321, SUS310S, SUS430 Thickness: 0.3mm–100mm General Industrial & Structural
  JIS G4305 SUS304, SUS304L, SUS316, SUS316L Thickness: 0.3mm–6mm Cold Rolled Applications
  DIN 17440 1.4301, 1.4307, 1.4401, 1.4404, 1.4571, 1.4541 Thickness: 0.3mm–100mm Industrial & Structural Use
  GB/T 4237 06Cr19Ni10, 022Cr19Ni10, 06Cr17Ni12Mo2, 022Cr17Ni12Mo2, 06Cr18Ni11Ti Thickness: 0.3mm–200mm Industrial, Chemical Equipment
  GB/T 3280 Same as above Thickness: 0.3mm–6mm Cold Rolled Sheet



1️⃣ Stainless Steel Plate Thickness Chart

Category Production Method Thickness Range Tolerance (Typical) Surface Finish Common Application
Thin Sheet Cold Rolled 0.3 mm – 1.0 mm ±0.03 – 0.05 mm 2B, BA, No.4, HL, 8K Decoration, Kitchenware, Panels
Medium Sheet Cold Rolled 1.2 mm – 6.0 mm ±0.05 – 0.10 mm 2B, No.4 Equipment, Tanks, Fabrication
Light Plate Hot Rolled 3 mm – 10 mm ±0.10 – 0.30 mm No.1 Structural Parts, Machinery
Medium Plate Hot Rolled 12 mm – 25 mm ±0.30 – 0.60 mm No.1 Pressure Vessels, Chemical Tanks
Heavy Plate Hot Rolled 30 mm – 60 mm ±0.60 – 1.20 mm No.1 Shipbuilding, Structural
Extra Heavy Plate Hot Rolled 70 mm – 200 mm ±1.20 mm+ No.1 Heavy Engineering



2️⃣ Stainless Steel Plate Weight Chart

Density used: 7.93 g/cm³

Thickness (mm) Weight (kg/m²)
0.5 3.97
0.8 6.34
1.0 7.93
1.2 9.52
1.5 11.90
2.0 15.86
3.0 23.79
4.0 31.72
5.0 39.65
6.0 47.58
8.0 63.44
10 79.30
12 95.16
16 126.88
20 158.60
25 198.25
30 237.90
40 317.20
50 396.50
60 475.80
80 634.40
100 793.00



Weight Calculation Formula

Weight (kg) = Thickness (mm) × Width (m) × Length (m) × 7.93



3️⃣ Stainless Steel Plate Sizes Chart

Thickness (mm) Standard Width (mm) Standard Length (mm) Type
0.3 – 3.0 1000 / 1219 / 1250 2000 / 2438 / 3000 Cold Rolled Sheet
3 – 6 1219 / 1500 2438 / 3000 / 6000 CR / HR
6 – 10 1500 / 1800 3000 / 6000 Hot Rolled Plate
12 – 20 1500 / 2000 6000 Hot Rolled Plate
25 – 40 2000 6000 / 8000 Heavy Plate
50 – 100 2000 / 2200 6000 / 8000 / 12000 Heavy Plate
120 – 200 2000 / 2500 6000 / 8000 / 12000 Extra Heavy Plate




Stainless steel sheet surface treatment




productcate-599-295



surface
features
Overview of Manufacturing Methods
use
NO.1
silvery white
Matteless
Hot rolled to the specified thickness
It does not need to be used for use with a surface gloss
NO.2D
silvery white
Heat treatment and pickling are carried out after cold rolling
General materials, deep-drawn materials
NO.2B
The luster is stronger than NO.2D
After NO.2D treatment, it is subjected to a final mild cold rolling process through polishing rollers
Wood for general use
BA
Bright as a mirror
There is no standard, but it is usually a bright annealed surface finish with a high surface reflectivity.
building materials, kitchen utensils
NO.3
Coarse polishing
Use 100~200# (unit) of grain grinding belt to grind
building materials, kitchen utensils
NO.4
Intermediate grinding
Polished surface obtained by grinding with 150~180# grain grinding belt
ditto
NO.240
Fine grinding
Grinding with 240# grain grinding belt
Kitchen utensils
NO.320
Extremely fine grinding
Grinding with 320# grain grinding belt
ditto
NO.400
The luster is close to BA
Grinding with a 400# polishing wheel
General materials, building materials, kitchen utensils
HL
Hairline grinding
Hair lines are sharpened with appropriate particles (150~240#), and there are many grains
Buildings, building materials
NO.8
Mirror grinding
The mirror is ground with a polishing wheel
Reflectors, decorative




stainless steel plate applications




our casey

decorative stainless steel plate

🏗 Construction & Architecture

stainless steel plate for construction
stainless steel plate for building facade
stainless steel plate for structural support
stainless steel plate for roofing
stainless steel plate for bridges
decorative stainless steel plate

⚓ Marine Industry

marine grade stainless steel plate
stainless steel plate for shipbuilding
stainless steel plate for offshore platform
316L stainless steel plate for marine
corrosion resistant stainless steel plate

marine grade stainless steel plate

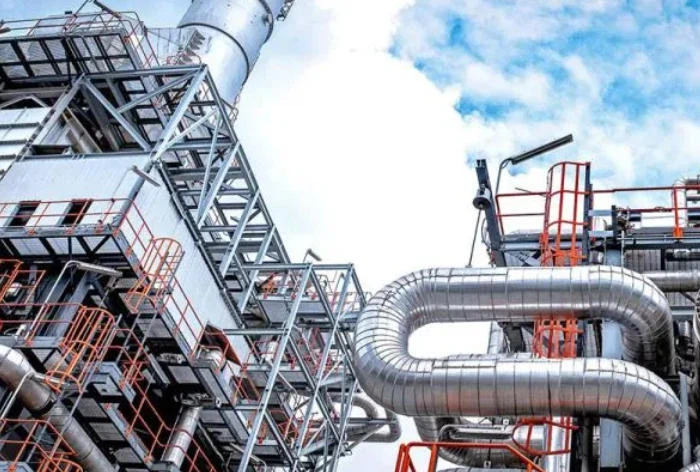

stainless steel plate for pressure vessels

🏭 Chemical & Petrochemical

stainless steel plate for chemical industry
stainless steel plate for pressure vessels
stainless steel plate for storage tanks
acid resistant stainless steel plate

🛢 Oil & Gas

stainless steel plate for oil and gas
stainless steel plate for pipelines
stainless steel plate for refineries

stainless steel plate for power plant
stainless steel plate for heat exchanger
310S stainless steel plate for boiler

stainless steel plate for oil and gas
food grade stainless steel plate

🍽 Food Processing

food grade stainless steel plate
stainless steel plate for food processing
stainless steel plate for kitchen equipment
304 stainless steel plate for food industry

Automotive Industry

stainless steel plate for automotive
409S stainless steel plate for exhaust system
409 stainless steel plate for exhaust
410 stainless steel plate for automotive

409S stainless steel plate for exhaust system





Manufacturing process of Gnee stainless steel plate





ASTM A480 Jis Sus 409 Stainless Steel Plate Pheet real-time quotes,  last-sale prices - Okorder.com



Manufacturing process of Gnee stainless steel plate

Hot rolling of stainless steel: It uses slab (mainly continuous casting slab) as raw material, and after heating, it is made into strip steel by rough rolling unit and finishing rolling unit. The hot steel strip coming out of the last rolling mill of finishing rolling is cooled to the set temperature by laminar flow, and rolled into steel strip coil by coiler. The cooled steel strip coil is processed into steel plate, flat coil and longitudinally cut steel strip products through different finishing lines (flattening, straightening, cross cutting or longitudinal cutting, inspection, weighing, packaging and marking, etc.) according to different needs of users.
Cold rolling of stainless steel: It is processed and rolled on the basis of hot-rolled stainless steel plate coil. Generally speaking, it is a process of hot rolling → pickling → cold rolling. Although the steel plate will heat up due to rolling during the processing process, it is still called cold rolling. Because the cold rolling is formed by continuous cold deformation of hot rolling, the mechanical properties are relatively poor and the hardness is too high. It must be annealed to restore its mechanical properties. The one without annealing is called hard rolled coil. Hard rolled coil is generally used for products that do not require bending or stretching.





Stainless Steel Sheet Factory



GNEE's stainless steel plate production line has a monthly capacity of 3,500 tons for hot-rolled plates (thickness 6-100mm) and 2,800 tons for cold-rolled plates (thickness 0.3-6.0mm), supporting mainstream grades such as 304, 316L, 321, 310S, and 904L. Utilizing vacuum melting, four-roll reversible rolling, and continuous solution annealing processes, we control thickness tolerance within ±0.05mm and surface roughness Ra≤0.02μm, strictly conforming to ASTM A240, EN 10088-2, and GB/T 3280 international standards.

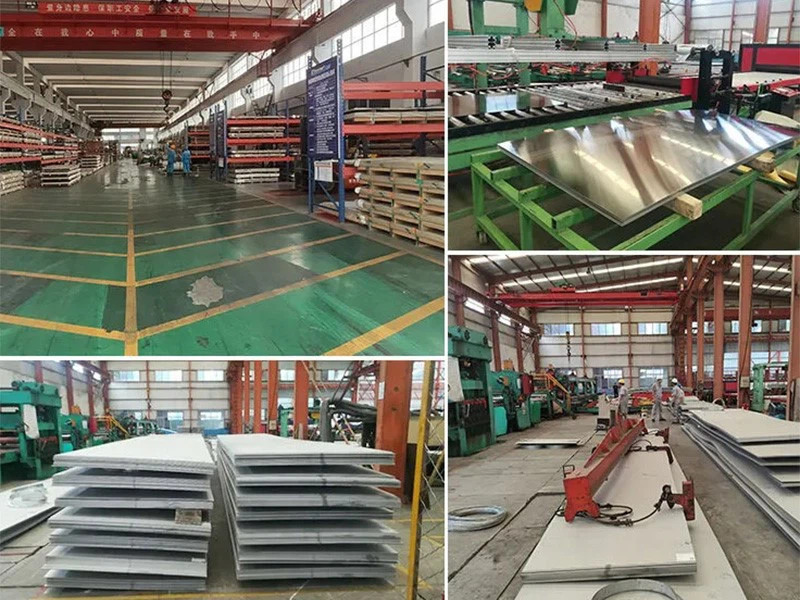

Stainless Steel Sheet Supplier
Stainless Steel Sheet Supplier

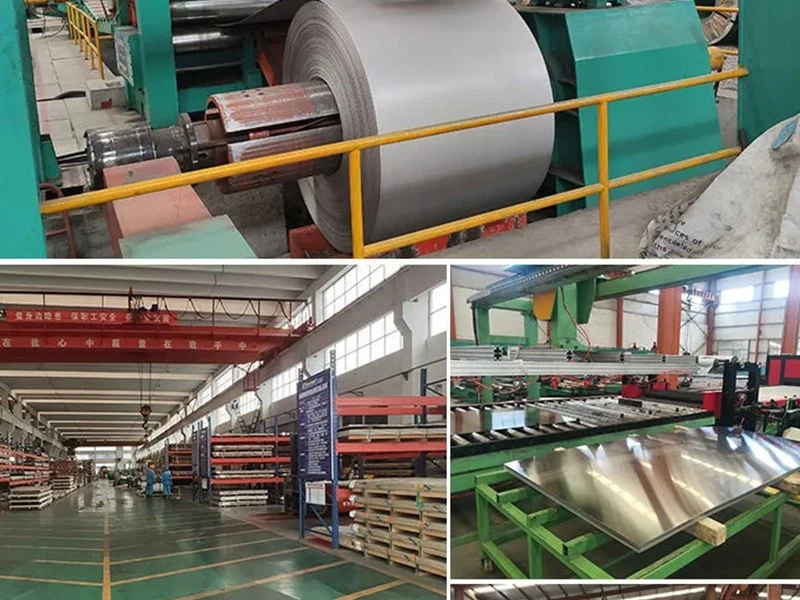

Stainless Steel Sheet Manufacturer
Stainless Steel Sheet Manufacturer





Quality Control



Each sheet material undergoes 100% spectral analysis, ultrasonic testing, and performance testing, and comes with a complete EN 10204 3.1 material certificate.

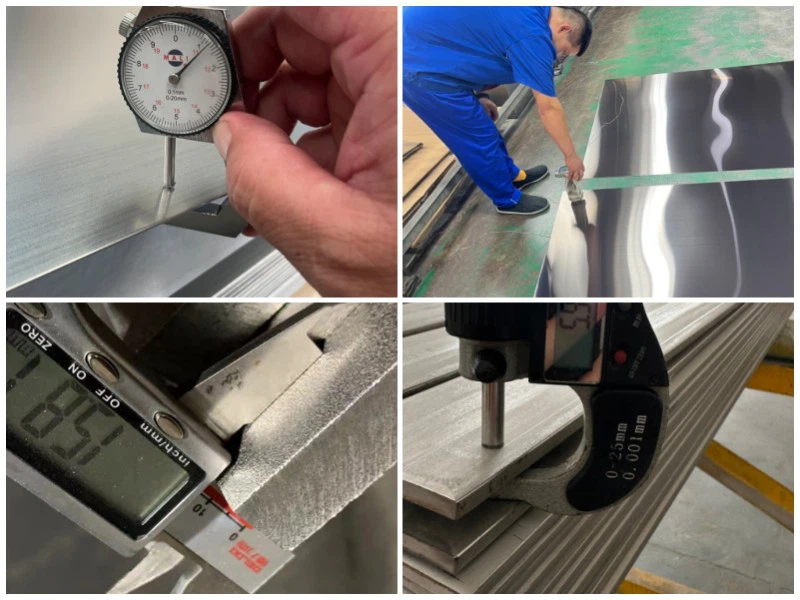

Stainless Steel Sheet Hardness Testing
Stainless Steel Sheet Hardness Testing

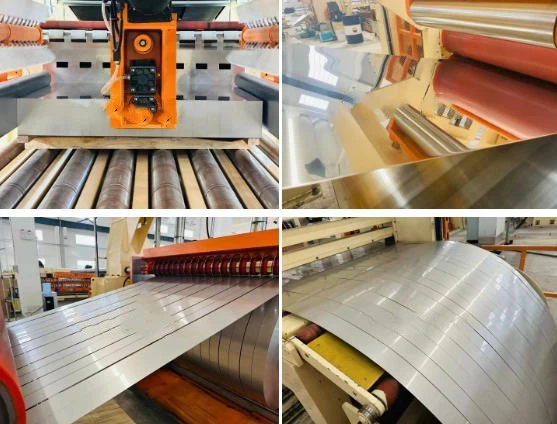

Slitting process
Slitting process




Packaging and shipping


Our products are exported to over 45 countries and regions worldwide. In-stock items are shipped within 3-7 days, and customized orders are shipped within 15-25 days, consistently providing high precision, high consistency, and reliable quality to customers globally.



Customized mirror panel packaging
Customized mirror panel packaging
Wooden pallet + steel strap bundling
Wooden pallet + steel strap bundling

FAQ


Q:Can you send stainless steel plate samples?

A: Of course, we can send samples to all over the world, our samples are free, but customers need to bear the express cost.

Q: Why is stainless steel plate such a popular manufacturing material?

A: There are many reasons why manufacturers choose GNEE STEEL to purchase stainless steel plates. Stainless steel has excellent corrosion resistance. When combined with other advantages (ease of fabrication, strength-to-weight ratio advantage, aesthetic appearance, easy cleaning ability, impact resistance and heat resistance), stainless steel plate becomes the material of choice for a variety of applications.

Q:What is the difference between 304 and 304L stainless steel plates?

A:  The main difference between these two types of stainless steel plates is the amount of carbon contained in each metal. 304 contains up to 0.08% carbon, while 304 L contains up to 0.03% carbon. The nickel content in stainless steel plates also varies slightly. 304 stainless steel plate can contain up to 10.5% nickel, while 304L can contain up to 12% nitrogen.

Q: Can 304 and 304L steel plates be polished?

A: Yes, 304 and 304L stainless steel plates can be polished to a variety of finishes.

Q: Can 304 and 304L stainless steel plates be heat treated?

A: Heat treating this type of stainless steel will not produce a stronger, more durable product.

Q: Are your stainless steel plates magnetic?

A: Generally speaking, stainless steel plates tend to be less magnetic than "regular" steel, and some grades are non-magnetic. Stainless steel bolts become slightly magnetic when cold worked. Although the "raw material" going into the bolt making machine is non-magnetic, the process of forming the heads and threads can cause the bolts to come out of the machine slightly magnetized, which will be more noticeable on smaller items.

Q: What is the heat resistance of this stainless steel plate?

A: If resistance to water corrosion is important, continuous use of 304 and 304L stainless steel plates is not recommended in the 800-1580°F range. Please consult our pre-sales team for specific applications.

Q: Can I purchase stainless steel plates that meet the requirements of both 304 and 304L stainless steel plates?

A: Yes, it is possible to purchase dual certified stainless steel plates in grades 304 and 304L.

Q: Are stainless steel plates expensive?

A: Stainless steel generally has a higher value than carbon steel fasteners. However, with global production increasing and nickel prices remaining low, A2 stainless steel offers incredible value for money. Nickel is an important component of alloys and has historically been one of the causes of price fluctuations. Global markets determine exchange rates, import duties, transportation costs, alloying element costs, production capacity and supply; all factors that determine stainless steel prices.

Gnee Steel (Tianjin) Co., Ltd. is well-known as one of the leading stainless steel plate manufacturers and suppliers in China. Our factory offers customized stainless steel plate made in China with competitive price. Welcome to contact us for wholesale service.
