Stainless Steel Profiles
Why choose GNEE STEEL's stainless steel profiles?
GNEE Steel Group is an integrated supply chain enterprise integrating steel plates, steel coils, profiles, and outdoor landscape design and processing. It was established in 2008 with a registered capital of RMB 5 million. The current total investment is RMB 30 million. The plant area is more than 35,000 square meters and it has more than 100 employees.
600+ Cooperative Customers
35000㎡
Factory Area
6 million tons of stainless steel profiles
1. Definition of GNEE stainless steel profiles
Why choose GNEE's stainless steel profiles?
Definition of GNEE stainless steel profiles
Stainless steel profiles are used in engineering construction. Based on the good corrosion resistance of stainless steel, it can make structural components permanently maintain the integrity of engineering design. Chromium-containing stainless steel also combines mechanical strength and high elongation, and is easy to process and manufacture components to meet the needs of architects and structural designers. After the first successful practical application, stainless steel profiles have standard specifications of stainless steel angle steel, flat steel and square steel.
Stainless steel profiles are stainless steel materials with different cross-sectional shapes obtained by hot melting and extrusion of stainless steel rods. The production process of stainless steel profiles mainly includes three processes: melting, extrusion and coloring. Among them, coloring mainly includes: oxidation, electrophoretic coating, fluorocarbon spraying, powder spraying, wood grain transfer and other processes.
2. Size of GNEE stainless steel profiles
Stainless steel U-beam
-
Code Dimensions kg/m U 20 20 x 10 x 3 x 3,5 0,86 U 30 30 x 15 x 3 x 3,5 1,37 U 30 30 x 15 x 4 x 4,5 1,78 U 30 30 x 33 x 5 x 7 4,30 U 40 40 x 20 x 3 x 3,5 1,80 U 40 40 x 20 x 4 x 4,5 2,40 U 40 40 x 35 x 5 x 7 4,80 U 50 50 x 25 x 3 x 3,5 2,28 U 50 50 x 25 x 5 x 5 3,60 U 50 50 x 25 x 5 x 6 4,20 U 50 50 x 25 x 6 x 6 4,10 U 50 50 x 38 x 5 x 7 5,70 U 60 60 x 30 x 5 x 5 4,37 U 60 60 x 30 x 6 x 6 5,10 U 65 65 x 42 x 5,5 x 7,5 7,40 U 80 80 x 40 x 4 x 4 4,90 U 80 80 x 40 x 5 x 5 5,94 U 80 80 x 40 x 6 x 6 7,00 U 80 80 x 45 x 6 x 6 7,60 U 80 80 x 45 x 6 x 8 8,64 U 100 100 x 50 x 4 x 4 6,20 U 100 100 x 50 x 5 x 5 7,65 U 100 100 x 50 x 6 x 6 8,94 U 100 100 x 50 x 6 x 8,5 10,60 U 120 120 x 55 x 7 x 9 13,50 U 120 120 x 60 x 5 x 5 9,20 U 120 120 x 60 x 6 x 6 10,93 U 130 130 x 65 x 6 x 6 12,08 U 140 140 x 60 x 7 x 10 16,40 U 140 140 x 70 x 7 x 7 14,62 U 150 150 x 75 x 6 x 6 13,80 U 160 160 x 65 x 7,5 x 10,5 18,80 U 160 160 x 80 x 8 x 8 19,21 U 180 180 x 70 x 8 x 11 22,00 U 180 180 x 70 x 9 x 12 24,20 U 200 200 x 75 x 8,5 x 11,5 25,30 U 200 200 x 75 x 10 x 13 29,52 U 200 200 x 100 x 6 x 6 18,70 U 200 200 x 100 x 8 x 8 24,60 U 200 200 x 100 x 10 x 10 30,40 U 220 220 x 80 x 9 x 12,5 29,40 U 220 220 x 80 x 10 x 13 31,80 U 240 240 x 85 x 9,5 x 13 33,20 U 300 300 x 100 x 10 x 16 46,45 U 300 300 x 100 x 12 x 16 50,90
Stainless steel T-beam
| Code | Dimensions | kg/m |
|---|---|---|
| T 20 | 20 x 20 x 3 | 0,88 |
| T 20 | 20 x 20 x 4 | 1,15 |
| T 25 | 25 x 25 x 3 | 1,13 |
| T 25 | 25 x 25 x 3,5 | 1,31 |
| T 25 | 25 x 25 x 4 | 1,50 |
| T 30 | 30 x 30 x 3 | 1,36 |
| T 30 | 30 x 30 x 4 | 1,77 |
| T 35 | 35 x 35 x 4 | 2,10 |
| T 40 | 40 x 40 x 3 | 1,85 |
| T 40 | 40 x 40 x 4 | 2,50 |
| T 40 | 40 x 40 x 5 | 2,96 |
| T 45 | 45 x 45 x 5,5 | 3,67 |
| T 50 | 50 x 50 x 3 | 2,30 |
| T 50 | 50 x 50 x 4 | 3,10 |
| T 50 | 50 x 50 x 5 | 3,80 |
| T 50 | 50 x 50 x 6 | 4,50 |
| T 60 | 60 x 60 x 3 | 2,80 |
| T 60 | 60 x 60 x 4 | 3,70 |
| T 60 | 60 x 60 x 5 | 4,60 |
| T 60 | 60 x 60 x 6 | 5,50 |
| T 70 | 70 x 70 x 7 | 7,30 |
| T 80 | 80 x 80 x 8 | 9,70 |
| T 90 | 90 x 90 x 9 | 12,50 |
| T 100 | 100 x 100 x 8 | 12,40 |
| T 100 | 100 x 100 x 10 | 15,10 |
| T 120 | 120 x 120 x 13 | 23,70 |
| T 140 | 140 x 140 x 15 | 31,80 |
Stainless steel I-beam
| Code | Dimensions | kg/m |
|---|---|---|
| IPE 80 | 80 x 46 x 3,8 x 5,2 | 6,10 |
| IPE 100 | 100 x 55 x 4,1 x 5,7 | 8,10 |
| IPE 120 | 120 x 64 x 4,4 x 6,3 | 10,40 |
| IPE 140 | 140 x 73 x 4,7 x 6,9 | 12,90 |
| IPE 160 | 160 x 82 x 5,0 x 7,4 | 15,80 |
| IPE 180 | 180 x 91 x 5,3 x 8,0 | 18,80 |
| IPE 200 | 200 x 100 x 5,6 x 8,5 | 22,40 |
| IPE 220 | 220 x 110 x 5,9 x 9,2 | 25,20 |
| IPE 240 | 240 x 120 x 6,2 x 9,8 | 29,40 |
| IPE 270 | 270 x 135 x 6,6 x 10,2 | 35,20 |
| IPE 300 | 300 x 150 x 7,1 x 10,7 | 41,40 |
| IPE 330 | 330 x 160 x 7,5 x 11,5 | 47,30 |
| IPE 360 | 360 x 170 x 8,0 x 12,7 | 56,00 |
| IPE 400 | 400 x 180 x 8,6 x 13,5 | 63,60 |
I-beams
Welded I-beams IPE, HEB, HEA to DIN 1025.
Size range:
Height H: 100-500 mm
Flange width B: 100-300 mm
Web thickness Tw: 5-12 mm
Flange thickness Tf: 6-20 mm (max. 15 mm duplex)
Standard length: 6 m
U- and L-profiles
Bent U-profiles up to 1000x250x20 mm (HxWxT)
Size range:
Height H: 120-1000 mm
Width B: 60-500 mm
Thickness T: 5-20 mm
Length L: 3-6 mm (max. 15 mm duplex)
Standard length: 6 m
Bent L-profiles up to 500x500x20 mm (HxBxT)
Size range:
Height H: 50-500 mm
Width B: 50-500 mm
Thickness T: 5-20 mm
Length L: 3-6 mm (maximum 15 mm on both sides)
Standard length: 6 meters
3. Brands of GNEE stainless steel profiles
| Serial number | China GB/T20878-2007 | USA ASTM A959-2004 | Japan JIS G4303-1998 JIS G4311-1991 | internationality ISO/TS15510-2003 ISO 4955-2005 | Europe EN10088:1-1995 EN 10095-1995 | Former Soviet Union r〇CT 5632-1972 | ||
| New grades | Old brand | |||||||
| 1 | 15Cr17Mn6Ni5N | 1Cr17Mn6Ni5N | S20100, 201 | SUS201 | X12CrMnNiN17—7—5 | X12CrMnNiN17—7—5,1.4372 | — | |
| 2 | 15Cr18Mn8Ni5N | 1Cr18Mn8Ni5N | S20200，202 | SUS202 | — | X12CrMnNiN18—9—5, 1.4373 | 12X17r9AH4 | |
| 3 | 20Cr13Mn9Ni4 | 2Cr13Mn9Ni4 | — | — | — | — | 20X13H4Г9 | |
| 4 | 20Cr15Mn15Ni2N | 2Cr15Mn15Ni2N | — | — | — | — | — | |
| 5 | 53Cr21Mn9Ni4N | 5Cr21Mn9Ni4N | — | SUH35 | X53CrMnNiN21-9 | X53CrMnNiN21—9， 1.4871 | 55X20 r9AH4 | |
| 6 | 26Cr18Mn12Si2N | 3Cr18Mn12Si2N | — | — | — | — | — | |
| 7 | 22Cr20Mn9Ni2Si2N | 2Cr20Mn9Ni2Si2N | — | — | — | — | — | |
| 8 | 15Cr17Ni7 | 1Cr17Ni7 | S30100, 301 | SUS301 | X10CrNi18-8 | X10CrNi18—8， 1.4310 | — | |
| 9 | 03Cr17Ni7 | S30103, 301L | SUS301L | |||||
| 10 | 03Cr17Ni7N | S30153, 301LN | — | X2CrNiN18-7 | X2CrNiN18—7， 1.4318 | — | ||
| 11 | 17Cr18Ni9 | 2Cr18Ni9 | — | — | — | — | 17X18H9 | |
| 12 | 15Cr18Ni9 | 1Cr18Ni9 | S30200，302 | SUS302 | X10CrNi18-8 | X10CrNi18—8， 1.4310 | 12X18H9 | |
| 13 | 15Cr18Ni9Si3 | 1Cr18Ni9Si3 | S30215, 302B | SUS302B | X12CrNiSi18-9-3 | — | — | |
| 14 | Y15Cr18Ni9 | Y1Cr18Ni9 | S30300，303 | SUS303 | X10CrNiS18-9 | X8CrNiS18—9， 1.4305 | — | |
| 15 | Y15Cr18Ni9Se | Y1Cr18Ni9Se | S30323, 303Se | SUS303Se | — | — | 12X18H10E | |
| 16 | 08Cr19Ni9 | 0Cr18Ni9 | S30400，304 | SUS304 | X5CrNi18-10 | X5CrNi18-10 | — | |
| 17 | 03Cr19Ni10 | 00Cr19Ni10 | S30403, 304L | SUS304L | X2CrNi19-11 | X2CrNi19-11 | 03X18H11 | |
| 18 | 07Cr19Ni9 | S30409， 304H | SUH304H | X7CrNi18-9 | X6CrNi18-10, 1.4948 | – | ||
| 19 | 05Crl9Nil0Si2NbN | S30415 | – | X6CrNiSiNCe19-10 | X6CrNiSiNCe19-10, 1.4818 | – | ||
| 20 | 08Cr18Ni9Cu2 | 0Cr18Ni9Cu2 | – | SUS304J3 | – | – | – | |
| 21 | 08Cr18Ni9Cu4 | 0Cr18Ni9Cu3 | S30430 | SUSXM7 | X3CrNiCu18-9-4 | X3CrNiCu18-9-4, 1.4567 | – | |
| 22 | 08Crl9Nil0N | 0Cr19Ni9N | S30451， 304N | SUS304N1 | X5CrNiN19-9 | X5CrNiN19-9, 1.4315 | – | |
| 23 | 08Cr19Ni9NbN | 0Cr19Ni10NbN | S30452， XM-21 | SUS304N2 | – | – | – | |
| 24 | 03Crl9Nil0N | 00Cr18Ni10N | S30453， 304LN | SUS304LN | X2CrNiN18-9 | X2CrNiN18-10，1.4311 | – | |
| 25 | 12Crl8Nil2 | 1Cr18Ni12 | S30500， 305 | SUS305 | X6CrNi18-12 | X4CrNi18-12， 1.4303 | 12X18H12T | |
| 26 | 08Cr18Ni12 | 0Cr18Ni12 | SUS305J1 | – | – | – | ||
| 27 | 08Cr16Ni18 | 0Cr16Ni18 | S38400， 384 | SUS384 | X3CrNi18-16 | – | – | |
| 28 | 08Cr20Ni11 | S30800， 308 | SUS308 | – | – | – | ||
| 29 | 22Cr21Ni12N | 2Cr21Ni12N | SUH37 | – | – | – | ||
| 30 | 20Cr23Ni13 | 2Cr23Ni13 | S30900， 309 | SUH309 | – | – | 20X23H12 | |
| 31 | 08Cr23Ni13 | 0Cr23Ni13 | S30908， 309S | SUS309S | X12CrNi23-13 | X12CrNi23-13，1.4833 | 10X23H13 | |
| 32 | 18Cr23Ni18 | 1Cr23Ni18 | – | – | – | – | 20X23H18 | |
| 33 | 25Cr25Ni20 | 2Cr25Ni20 | S31000， 310 | SUH310 | X15CrNi25-21 | X15CrNi25-21，1.4821 | 20X25H20C2 | |
| 34 | 08Cr25Ni20 | 0Cr25Ni20 | S31008， 310S | SUS310S | X8CrNi25-21 | X8CrNi25-21， 1.4845 | 08X23H18 | |
| 35 | 03Cr25Ni22Mo3N | S31050， 310MoLN | – | X1CrNiMoN25-22-2 | X1CrNiMoN25-22-2， 1.4466 | – | ||
| 36 | 02Cr20Ni18Mo6CuN | S31254 | – | X1CrNiMoN20-18-7 | X1CrNiMoN20-18-7， 1.4547 | – | ||
| 37 | 15Cr16Ni35 | 1Cr16Ni35 | 330 | SUH330 | – | X12CrNiSi35-16， 1.4864 | ||
| 38 | 08Cr17Ni12Mo2 | 0Cr17Ni12Mo2 | S31600， 316 | SUS316 | X5CrNiMo17-12-2 | X5CrNiMo17-12-2， 1.4401 | – | |
| 39 | 03Cr17Ni12Mo2 | 00Cr17Ni14Mo2 | S31603， 316L | SUS316L | X2CrNiMo17-12-2 | X2CrNiMo17-12-2， 1.4404 | 03X17H14M2 | |
| 40 | 07Cr17Ni12Mo2 | 1Cr17Ni12Mo2 | S31609， 316H | – | – | X3CrNiMo17-13-3， 1.4436 | – | |
| 41 | 08Crl7Nil2Mo2Ti | 0Cr18Ni12Mo2Ti | S31635， 316Ti | SUS316Ti | X6CrNiMoTi17-12-2 | X6CrNiMoTi17-12-2, 1.4571 | 08X17H13M3T | |
| 42 | 08Crl7Nil2Mo2Nb | S31640， 316Nb | – | X6CrNiMoNb17-12-2 | X6CrNiMoNb17-12-2, 1.4580 | 03X16H13M3Б | ||
| 43 | 08Cr17Ni12Mo2N | 0Cr17Ni12Mo2N | S31651， 316N | SUS316N | – | – | – | |
| 44 | 03Cr17Ni12Mo2N | 00Cr17Ni13Mo2N | S31653， 316LN | SUS316LN | X2CrNiMoN17-12-3 | X2CrNiMoN17-13-3, 1.4429 | – | |
| 45 | 08Cr18Ni12Mo2Cu2 | 0Cr18Ni12Mo2Cu2 | – | SUS316J1 | – | – | – | |
| 46 | 03Cr18Ni14Mo2Cu2 | 00Cr18Ni14Mo2Cu2 | – | SUS316J1L | – | – | – | |
| 47 | 08Cr19Ni13Mo4 | 0Cr19Ni13Mo3 | S31700， 317 | SUS317 | – | – | – | |
| 48 | 03Cr19Ni13Mo4 | 00Cr19Ni13Mo3 | S31703， 317L | SUS317L | X2CrNiMo19-14-4 | X2CrNiMo18-15-4, 1.4438 | 03X16H15M3 | |
| 49 | 04Cr18Ni16Mo5 | 0Cr18Ni16Mo5 | S31725, 317LM | SUS317J1 | – | – | – | |
| 50 | 03Cr19Ni16Mo5N | S31726， 317LMN | X2CrNiMoN18-15-5 | X2CrNiMoN17-13-5, 1.4439 | – | |||
| 51 | 03Cr19Ni13Mo4N | S31753， 317LN | SUS317LN | X2CrNiMoN18-12-4 | X2CrNiMoN18-12-4, 1.4434 | – | ||
| 52 | 03Cr18Ni14Mo3 | 00Cr18Ni14Mo2 | – | – | – | – | – | |
| 53 | 03Cr18Ni15Mo4N | 00Cr18Ni15Mo4N | – | – | – | – | – | |
| 54 | 08Cr18Ni10Ti | 0Cr18Ni10Ti | S32100,321 | SUS321 | X6CrNiTi18-10 | X6CrNiTi18-10, 1.4541 | 08X18H10T | |
| 55 | 07Cr18Ni11Ti | 1Cr18Ni11Ti | S32109, 321H | SUS321H | X7CrNiTi18-10 | X6CrNiTi18-10, 1.4541 | 12X18H11T | |
| 56 | 02Cr25Ni22Mo8Mn3CuN | S32654 | – | X1CrNiMoCuN24-22-8 | X1CrNiMoCuN24-22-8,1. 4652 | – | ||
| 57 | 03Cr24Ni17Mo5Mn6CuN | S34565 | – | X2CrNiMnMoN25-18-6-5 | X2CrNiMnMoN25-18-6-5， 1.4565 | – | ||
| 58 | 08Cr18Ni11Nb | 0Cr18Ni11Nb | S34700， 347 | SUS347 | X6CrNiNb18-10 | X6CrNiNb18-10, 1.4550 | 08X18H12Б | |
| 59 | 07Crl8NillNb | 1Cr19Ni11Nb | S34709， 347H | SUS347 | X7CrNiNb18-10 | X7CrNiNb18-10, 1.4912 | ||
| 60 | 45Cr14Ni14W2Mo | 4Cr14Ni14W2Mo | – | – | – | – | 45X14H14B2M | |
| 61 | 25Cr18Ni8W2 | 2Cr18Ni8W2 | – | – | – | – | 25X18H8B2 | |
| 62 | 08Cr18Ni13Si4 | 0Cr18Ni13Si4 | S38100, XM-15 | SUSXM15J1 | – | – | – | |
| 63 | 02Cr18Ni15Si4Nb | – | – | – | – | – | ||
| 64 | 02Cr21Ni26Mo5Cu2 | – | – | – | – | – | ||
| 65 | 20Cr20Ni14Si2 | 1Cr20Ni14Si2 | – | – | X15CrNiSi20-12 | X15CrNiSi20-12, 1.4828 | – | |
| 66 | 20Cr25Ni20Si2 | 1Cr25Ni20Si2 | S31400，314 | X15CrNiSi25-21 | X15CrNiSi25-21, 1.4841 | 20X25H20C2 | ||
| 67 | 14Cr19Ni11Si4AlTi | 1Cr18Ni11Si4AlTi | – | – | – | – | 15X18H12C4TЮ | |
| 68 | 03Cr19Ni5Mo3Si2N | 00Cr18Ni5Mo3Si2 | – | – | – | – | – | |
| 69 | 12Cr21Ni5Ti | 1Cr21Ni5Ti | – | – | – | – | 10X21H5T | |
| 70 | 03Cr22Ni5Mo3N | S31803 | SUS329J3L | X2CrNiMoN22-5-3 | X2CrNiMoN22-5-3， 1.4462 | – | ||
| 71 | 03Cr23Ni4N | S32304, 3204 | – | X2CrNiN23-4 | X2CrNiN23-4， 1.4362 | – | ||
| 72 | 03Cr25Ni6Mo2N | S31200 | – | X3CrNiMoN27-5-2 | X3CrNiMoN27-5-2， 1.4460 | – | ||
| 73 | 03Cr25Ni7Mo3WCuN | S31260 | SUS329J2L | – | – | – | ||
| 74 | 04Cr26Ni6Mo3Cu2N | S32550, 255 | SUS329J4L | X2CrNiMoCuN25-6-3 | X2CrNiMoCuN25-6-3， 1.4507 | – | ||
| 75 | 03Cr25Ni7Mo4N | S32750, 2507 | – | X2CrNiMoN25-7-4 | X2CrNiMoN25-7-4， 1.4410 | – | ||
| 76 | 03Cr25Ni7Mo4WCuN | S32760 | – | X2CrNiMoWN25-7-4 | X2CrNiMoWN25-7-4， 1.4501 | – | ||
| 77 | 08Cr13Al | 0Cr13Al | S40500，405 | SUS405 | X6CrAl13 | X6CrAl13，1.4002 | – | |
| 78 | 08Cr11Ti | 0Cr11Ti | S40900 | SUH409 | X6CrTi12 | – | – | |
| 79 | 03Cr11Ti | S40920 | SUH409L | X2CrTi12 | X2CrTi12，1.4512 | – | ||
| 80 | 03CrllNbTi | S40930 | — | — | — | — | ||
| 81 | 08Cr13 | 0Cr13 | S41008, 410S | SUS410S | X6Cr13 | X6Cr13, 1.4000 | 08X13 | |
| 82 | 03Cr12 | 00Cr12 | — | SUS410L | — | — | — | |
| 83 | 03Cr12Ni | S40977 | — | X2CrNi12 | X2CrNi12, 1.4003 | — | ||
| 84 | 12Cr15 | 1Cr15 | S42900, 429 | SUS429 | — | — | — | |
| 85 | 12Cr17d | 1Cr17 | S43000 | SUS430 | X6Cr17 | X6Cr17, 1.4016 | 12X17 | |
| 86 | Y12Cr17 | Y1Cr17 | S43020, 430F | SUS430F | X7CrS17 | X14CrMoS17, 1.4104 | — | |
| 87 | 03Cr18Ti | 00Cr17 | S43035, 439 | SUS430LX | X3CrTi17 | X3CrTi17, 1.4510 | 08X17T | |
| 88 | 12Cr17Mo | 1Cr17Mo | S43400, 434 | SUS434 | X6CrMo17—1 | X6CrMo17—1, 1.4113 | — | |
| 89 | 12Cr17MoNb | S43600, 436 | — | X6CrMoNb17—1 | X6CrMoNb17—1, 1.4526 | — | ||
| 90 | 03Cr18Ti | — | SUS436L | — | — | — | ||
| 91 | 03Cr18NbTi | S43940 | — | — | X2CrTiNb18, 1.4509 | — | ||
| 92 | 03Cr18Mo2NbTi | 00Cr18Mo2 | S44400, 444 | SUS444 | X2CrMoTi18—2 | X2CrMoTi18—2, 1.4521 | — | |
| 93 | 01Cr27Mo | 00Cr27Mo | S44627, XM—27 | SUSXM27 | — | — | — | |
| 94 | 01Cr30Mo2 | 00Cr30Mo2 | — | SUS447J1 | — | — | — | |
| 95 | 15Cr12 | 1Cr12 | S40300, 403 | SUS403 | — | — | — | |
| 96 | 15Cr13 | 1Cr13 | S41000, 410 | SUS410 | X12Cr13 | X12Cr13, 1.4006 | 12X13 | |
| 97 | Y25Cr13Ni2 | Y2Cr13Ni2 | — | — | — | — | 25X13H2 | |
| 98 | 05Cr13Ni5Mo | S41500 | SUSF6NM | X3CrNiMo13—4 | X3CrNiMo13—4, 1.4313 | — | ||
| 99 | Y15Cr13 | Y1Cr13 | S41600, 416 | SUS416 | X12CrS13 | X12CrS13, 1.4005 | — | |
| 100 | 21Cr13 | 2Cr13 | S42000, 420 | SUS420J1 | X20Cr13 | X20Cr13, 1.4021 | 20X13 | |
| 101 | 31Cr13 | 3Cr13 | S42000, 420 | SUS420J2 | X30Cr13 | X30Cr13, 1.4028 | 30X13 | |
| 102 | Y31Cr13 | Y3Cr13 | S42020, 420F | SUS420F | X29CrS13 | X29CrS13, 1.4029 | — | |
| 103 | 41Cr13 | 4Cr13 | — | — | X39Cr13 | X39Cr13, 1.4031 | 40X13 | |
| 104 | 14Cr17Ni2 | 1Cr17Ni2 | S43100, 431 | SUS431 | X17CrNi16-2 | X17CrNi16—2, 1.4057 | 14X17H2 | |
| 105 | 16Cr17Ni3 | S43100, 431 | SUS431 | X17CrNi16-2 | X17CrNi16—2, 1.4057 | 14X17H2 | ||
| 106 | 68Cr17 | 7Cr17 | S44002, 440A | SUS440A | — | — | — | |
| 107 | 85Cr17 | 8Cr17 | S44003, 440B | SUS440B | — | — | — | |
| 108 | 108Cr17 | 11Cr17 | S44004, 440C | SUS440C | X105CrMo17 | X105CrMo17, 1.4125 | — | |
| 109 | Y108Cr17 | Y11Cr17 | S44020, 440F | SUS440F | — | — | — | |
| 110 | 95Cr18 | 9Cr18 | — | — | — | — | 95X18 | |
| 111 | 108Cr17Mo | 9Cr18Mo | S44004, 440C | SUS440C | X105CrMo17 | X105CrMo17, 1.4125 | — | |
| 112 | 90Cr18MoV | 9Cr18MoV | S44003, 440B | SUS440B | — | X90CrMoV18, 1.4112 | — | |
| 113 | 10Cr5Mo | 1Cr5Mo | S50200, 502 | — | — | 12CrMo19—5, 1.7362 | 15X5M | |
| 114 | 12Cr12Moa | 1Cr12Mo | — | — | — | — | — | |
| 115 | 13Cr13Mo | 1Cr13Mo | — | SUS410J1 | — | — | — | |
| 116 | 32Cr13Mo | 3Cr13Mo | – | – | – | – | – | |
| 117 | 15Cr11MoV | 1Cr11MoV | – | – | – | – | 15X11Mф | |
| 118 | 15Cr12WMoV | 1Cr12WMoV | – | – | – | – | 15X12BHMф | |
| 119 | 158Cr12MoV | 1Cr12MoV | – | – | – | – | – | |
| 120 | 21Cr12MoV | 2Cr12MoV | – | – | – | – | – | |
| 121 | 18Cr12MoVNbN | 2Cr12MoVNbN | – | SUH600 | – | – | – | |
| 122 | 13Cr11Ni2W2MoV | 1Cr11Ni2W2MoV | – | – | – | – | 11X11H2B2Mф | |
| 123 | 23Cr12NiWMoV | 2Cr12NiMoWV | 616 | SUH616 | – | – | – | |
| 124 | 13Cr14Ni3W2VB | 1Cr14Ni3W2VB | – | – | – | – | – | |
| 125 | 14Cr12Ni2WMoVNb | 1Cr12Ni2WMoVNb | – | – | – | – | – | |
| 126 | 15Cr11NiMoNbVN | 2Cr11NiMoNbVN | – | – | – | – | – | |
| 127 | 45Cr9Si3 | 4Cr9Si2 | – | SUH1 | – | X45CrSi8, | 40X9C2 | |
| 128 | 40Cr10Si2Mo | 4Cr10Si2Mo | – | SUH3 | – | X40CrSiMo10, 1.4731 | 40X10C2M | |
| 129 | 80Cr20Si2Ni1 | 8Cr20Si2Ni | – | SUH4 | – | X80CrSiNi20, 1.4747 | – | |
| 130 | 05Cr13Ni8Mo2Al | S13800, XM-13 | – | – | – | – | ||
| 131 | 07Cr15Ni5Cu4Nb | S15500, XM-12 | – | |||||
| 132 | 07Cr17Ni4Cu4Nb | 0Cr17Ni4Cu4Nb | S17400, 630 | SUS630 | X5CrNiCuNb16-4 | X5CrNiCuNb16-4, 1.4542 | – | |
| 133 | 09Cr17Ni7Al | 0Cr17Ni7Al | S17700, 631 | SUS631 | X7CrNi17-7 | X7CrNi17-7, 1.4568 | 09X17H7M | |
| 134 | 09Cr15Ni7Mo3Al | 0Cr15Ni7Mo2Al | S15700, 632 | – | X8CrNiMoAl15-7-2 | X8CrNiMoAl15-7-2，1.4532 | – | |
| 135 | 09Cr12Mn5Ni4Mo3Al | 0Cr12Mn5Ni4Mo3Al | – | – | – | – | ||
| 136 | 09Crl7Ni5Mo3N | S35000, 633 | – | – | – | – | ||
| 137 | 08Cr17Ni7AlTi | S17600, 635 | – | – | – | – | ||
| 138 | 03Cr12Ni9Cu2NbTi | S45500, XM-16 | — | – | – | – | ||
| 139 | 08Cr15Ni25MoTi2AlVB | S66286, 660 | SUH660 | – | – | – | ||
4. Types of GNEE stainless steel profiles
Profiles are materials made of plates in various shapes, including bars, angle steel, flat steel, channel steel, wire, etc.

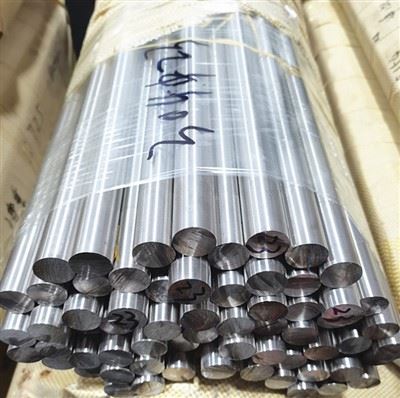

(1) Stainless steel bars
Stainless steel bars are made of stainless steel ingots through hot rolling or forging. Classification of stainless steel bars: According to shape, they can be roughly divided into: stainless steel round bars, stainless steel square bars, stainless steel hexagonal bars. According to surface treatment, they can be divided into: stainless steel black bars, stainless steel acid white bars, stainless steel bright bars, stainless steel grinding bars.
(2) Stainless steel special-shaped materials
Stainless steel special-shaped materials are a type of stainless steel profiles. Their shapes can be divided into many types. The most common ones are angle steel, flat steel, channel steel, etc.
(3) Stainless steel wire
Stainless steel wire can also be called stainless steel wire, wire rod, and wire element. Stainless steel wire is also called stainless steel wire. It is a silk product of various specifications and models made of stainless steel as raw material. The common stainless steel wires with good corrosion resistance and high cost performance are 304 and 316 stainless steel wires.
6. Applications of GNEE stainless steel profiles
Stainless steel profiles have a wide range of applications across various industries due to their exceptional properties and versatility. Here are some common applications of stainless steel profiles:
Construction: Stainless steel profiles are widely used in the construction industry for structural framing, support beams, and architectural trim due to their strength, corrosion resistance, and aesthetic appeal.
Automotive: In the automotive sector, stainless steel profiles are used for producing exhaust systems, automotive trim, and structural components due to their durability, heat resistance, and ability to withstand harsh environmental conditions.
Food and Beverage Industry: Stainless steel profiles are essential in the food and beverage industry for producing equipment such as tanks, pipelines, and food processing machinery due to their hygienic properties and resistance to corrosion from food products and cleaning agents.
Marine Applications: Due to its resistance to corrosion from saltwater and harsh marine environments, stainless steel profiles are extensively used in marine applications for boat fittings, shipbuilding, offshore platforms, and coastal infrastructure.
Medical and Pharmaceutical: Stainless steel profiles are crucial in the medical and pharmaceutical industries for manufacturing surgical instruments, hospital equipment, and pharmaceutical processing machinery due to their corrosion resistance and ease of sterilization.
The versatility and durability of stainless steel profiles make them indispensable in a wide range of applications across diverse industries.
By incorporating stainless steel profiles, manufacturers can ensure reliable and long-lasting performance in their products and systems, making them a preferred choice across various sectors.
7. GNEE STEEL stainless steel profile packaging
GNEE STEEL stainless steel profile Customized Packing Services
GNEE stainless steel profile custom packaging is the process of designing and creating packaging solutions that suit the specific characteristics and requirements of your steel products. Customized packaging can enhance the appearance, functionality and safety of your products and reflect your brand image and values. Customized packaging can also help you differentiate your products from competitors and attract more customers. At GNEE STEEL, we provide stainless steel custom packaging services for a variety of stainless steel products such as pipes, components or special products. We also provide environmentally friendly packaging options, such as biodegradable, recyclable or reusable materials that meet your environmental values without compromising the protection of your products. You can follow our website homepage and contact us on the website homepage to customize your ideal stainless steel profile packaging for you.
Benefits of GNEE STEEL's custom packaging service:
Suits your products and your brand.
Enhances the appearance, functionality, and safety of your products.
Offers eco-friendly packaging options for your products.
Adds a personal touch to your packaging with custom labels or messages.
8. GNEE company style
GNEE STEEL company team and environment
GNEE STEEL factory environment and GNEE STEEL Group were invited to participate in foreign exhibitions
9. FAQ
FAQ
Q:Can you send stainless steel profile samples?
Q: What ss steel profile information do I need to provide?
Q:Can you provide us with samples of stainless steel profiles? Free of charge or for a fee?
Q: Q: Can I get the best price on ss steel profiles?
Q: How long is your delivery time?
Q: How many countries have you exported to?
Q: What are the advantages of your company's stainless steel profile products?
Q: What are the payment terms for your stainless steel profiles?
Q: About the stainless steel profiles price?
Gnee Steel (Tianjin) Co., Ltd. is well-known as one of the leading stainless steel profile manufacturers and suppliers in China. Our factory offers customized stainless steel profile made in China with competitive price. Welcome to contact us for wholesale service.
ST37 H Beam Stainless Steel
