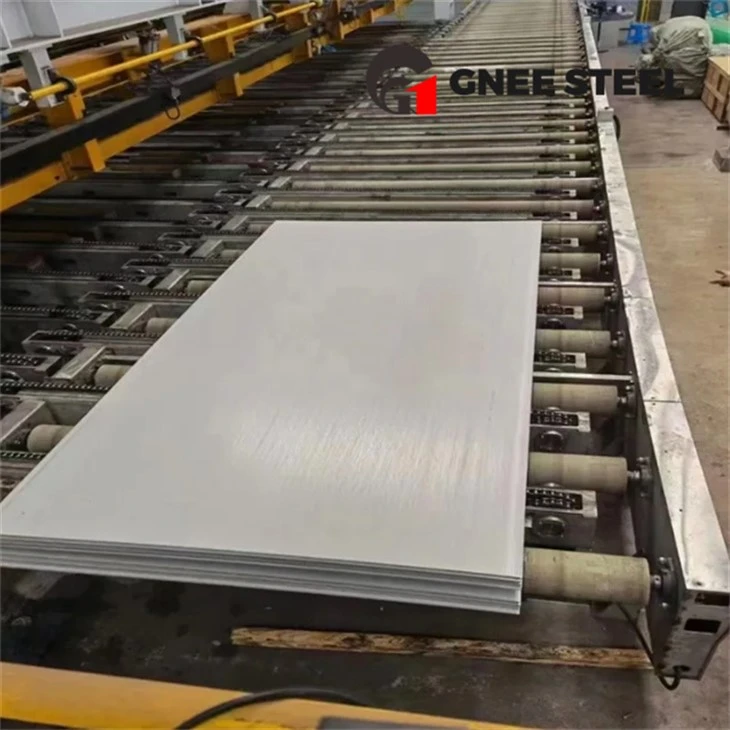

Hastelloy C22 Alloy Steel Sheet
Approximate grades: UNS N06022, W N 2.4602, NS3308
Certification: ISO9001:2015
Alloy category: Hastelloy
Substrate shape:plate
Alloy series: nickel-chromium-molybdenum alloy
Implementation standard: ASTM
Application areas: industrial field, petrochemical industry, marine shipbuilding
Send E-mail:info@gneestainless.com
Tel:+8615824687445
Description
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of hastelloy c22 alloy steel sheet in China. With abundant experience, we warmly welcome you to wholesale customized hastelloy c22 alloy steel sheet from our factory. For price consultation, contact us.
Introduction of Hastelloy C22 Thin Plate
Hastelloy C22 cold rolled steel plate, also known as Alloy C-22, UNSN06022 and W. Nr. 2.4602, is a nickel-chromium-molybdenum-tungsten alloy suitable for a variety of chemical processing applications.
Hastelloy C-22 alloy plate has excellent resistance to pitting, crevice corrosion and stress corrosion cracking and is widely used in harsh chemical environments such as chemical processing, pollution control and wastewater treatment facilities.
Hastelloy C22 plate is usually produced by cold rolling, and the thickness range is usually between 0.5mm and 100mm, with width and length determined according to customer needs.
Hastelloy Alloy C22 Plate Specification
Alloy C-22 Chemical Composition, %
| C | Cr | Co | Fe | Mn | Mo | Ni | P | Si | S | W | V |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
.010 max |
20-22.5 |
2.5 max |
2.0-6.0 |
.50 max |
12.5-14.5 |
Balance |
.02 max |
.08 max |
.02 max |
2.5-3.5 |
.35 max |
UNS N06022 Alloy ASTM Specifications
| Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet / Plate | Bar | Forging | Fitting |
|---|---|---|---|---|---|---|---|
|
B622 |
B619 |
B622 |
B626 |
B575 |
B574 |
B564 |
B366 |
Nickel-based alloy C-22 Mechanical Properties
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
|
Plate (.25"-1.75") |
112 |
53 |
62 |
89 |
|
Sheet (.038"-.15") |
122 |
63 |
54 |
93 |
Why Choosing GNEE
GNEE has advanced machinery and equipment, including 2 1-ton and 2-ton vacuum furnaces, 2 3-ton and 5-ton vacuum furnaces, 2 2-ton and 1-ton induction furnaces, 4 three-roll and four-roll rolling mills, 4 online annealing furnaces, etc. It also has a chemical and physical testing center with advanced equipment such as spectrometers, optical instruments, testers, tensile testing machines and other experimental equipment.
C22 Hastelloy Hot–Finished plate Exporters
Alloy C22 Thin Plate Stockist
FAQ
Q: Can you provide the samples and how long can i get samples?
A:Yes,we could offer the samples for free charge but the cost of freight be paid by customers.And generally speaking ,customized samples will take about 7-10 days.
Q: What is the MOQ about products?
A:Flexible quantity according to your need.
Q: How does your company control quality?
A:According to the standard for production.And we can also accept the third-party inspection.
