ASTM B575 UNS N10276 Alloy Plate
ASTM B575 UNS N10276 Alloy Plate is a high performance nickel-based alloy primarily used for corrosion resistance and high temperature applications in extreme environments.
Send E-mail:info@gneestainless.com
Tel:+8615824687445
Description
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of astm b575 uns n10276 alloy plate in China. With abundant experience, we warmly welcome you to wholesale customized astm b575 uns n10276 alloy plate from our factory. For price consultation, contact us.
What is ASTM B575 UNS N10276 Sheet?
UNS N10276 (Hastelloy C-276) is a low-carbon corrosion-resistant alloy based on nickel. It complies with the ASTM B575 standard, covering the chemical composition, mechanical properties, tolerances and processing requirements of its plates and sheets.
Hastelloy C-276 plates perform better than 316L and 904L stainless steels in wet chlorine, hypochlorite and ferric chloride solutions, and have an oxidation resistance temperature of up to 1100°C, making them suitable for high-temperature and high-pressure equipment16. Although more expensive than ordinary stainless steel, their long life and low maintenance costs make them more economical in harsh environments

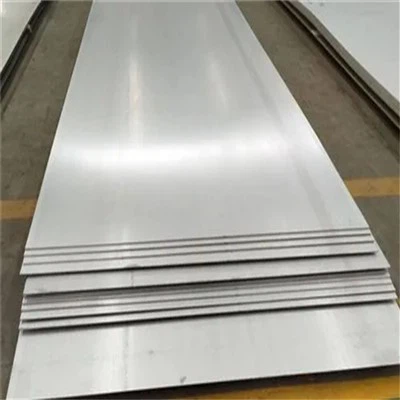

Hastelloy Alloy C276 Cold Rolled Plate
UNS N10276 Cold Rolled Steel Plate Specification
| Product Type | Hastelloy C276 Plate |
|---|---|
| Specification | ASTM B575 / ASME SB575 |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Length | 2.44m, 2m, 3m, or as required |
| Dimensions |
Hot rolled Hastelloy C276 Plates 3.0–10.0 mm Cold rolled Hastelloy C276 Plates 0.5-6.4 mm |
Equivalent Grades Of Hastelloy C276 Alloy Sheet
| Std | UNS | Werkstoff no | Japan Industrial Standard | GOST | OR | European Standards |
| Alloy C276 | N10276 | 2.4819 | NW 0276 | ХН65МВУ | ЭП760 | NiMo16Cr15W |
Nickel Alloy C276 Sheet Chemical Composition Standard
| Grade | Carbon | Manganese | Silicon | Sulfur | Carbon monoxide | Nickel | Chromium | iron | Molybdenum | Phosphorous |
| Hastelloy C276 | 0.010 maximum | 1.00 maximum | 0.08 maximum | 0.03 maximum | 2.50 maximum | 50.99 minimum | 14.50 to 16.50 | 4.00 to 7.00 | 15.00 to 17.00 | 0.04 maximum |
Hastelloy C276 UNS N10276 Cold Rolled Plate Mechanical Characteristics
| Element | Melting Point | Tensile Strength | Yield Strength | Elongation | Density |
| Hastelloy C276 | 1370 °C | Psi=1,15,000, MPa=790 | Psi=52,000, MPa=355 | 40 % | 8.89 gram per CM |
Reasons to choose GNEE
PMI Spectral Analysis: Verify Ni, Cr, Mo content in accordance with UNS N10276.
Ultrasonic Testing: Detect internal defects (in accordance with ASTM E494).
Salt Spray Test: Pass 1000+ hours neutral salt spray test (ASTM B117).
Hastelloy DIN 2.4819 Exporter
Hastelloy C276 Stockists
FAQ
Q: What is the price of C-276 alloy plate? How is it different from 316L stainless steel?
Price range: about 5–8 times that of 316L stainless steel (due to the high proportion of nickel, molybdenum, and tungsten).
Cost advantage: It can significantly reduce maintenance costs in highly corrosive environments and has a lifespan 3–5 times longer than 316L.
Q: Does C-276 alloy plate require maintenance?
Daily maintenance:
Avoid long-term contact with acidic/halide solution residues;
Clean the surface regularly with a neutral detergent to prevent the accumulation of pollutants;
The welding area needs to be checked for signs of stress corrosion cracking.
