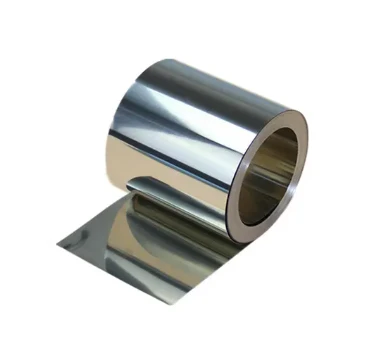

409/409L Cold Rolled Stainless Steel Foil
Name：409 Thin Stainless Steel Strip Foil
Grade：400 Series
Technique： Cold Rolled
Tolerance：±1%
Steel Grade
Surface Finish：2B 2D BA No.4
Standard：JIS AiSi ASTM GB DIN
Delivery Time：15-21 days
Width：5-2000mm
Length：as customer request
Processing Service：Bending, Welding, Decoiling, Punching, Cutting
Transport Package:Metal Pallet Standard Export Package
Send E-mail:info@gneestainless.com
Tel:+8615824687445
Description
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of 409/409l cold rolled stainless steel foil in China. With abundant experience, we warmly welcome you to wholesale customized 409/409l cold rolled stainless steel foil from our factory. For price consultation, contact us.
If you are looking for an economical, high-temperature oxidation-resistant, and easily formable 409/409L cold-rolled stainless steel foil for applications such as automotive exhaust systems, heat shields, and high-temperature components, GNEE offers high-quality 409/409L cold-rolled stainless steel foil that meets international standards such as ASTM A240, EN 10088-2, and JIS G4305. Our products effectively address common issues in high-temperature applications, including poor oxidation resistance, high material costs, and insufficient formability.
Our 409/409L cold-rolled foils are available in thicknesses ranging from 0.05mm to 0.5mm and widths from 5mm to 650mm. We offer surface finishes including 2B, BA, and pickled, and use precision cold-rolling and titanium-stabilized annealing processes during production. The 409L variant features an ultra-low carbon design with carbon content ≤0.03%, and is treated with titanium stabilization, ensuring reliable high-temperature oxidation resistance with a maximum service temperature of up to 850°C. Its thermal fatigue stability outperforms 201 and 430 stainless steel foils, and it offers a significant cost advantage compared to 304 and 321 grades.
We use high-purity raw materials, controlling heavy metal impurities to ≤0.001% and ensuring strict thickness tolerance of ±0.003mm. The edges are smooth and burr-free, with an elongation rate ≥35%, guaranteeing excellent stamping and forming performance. Our foils are widely used in automotive exhaust pipes, motorcycle mufflers, heat insulation components, and high-temperature electrical components.
Each roll of 409L stainless steel cold-rolled foil undergoes 100% spectral composition testing, eddy current flaw detection, and high-temperature performance testing, and comes with a complete EN 10204 3.1 quality certificate.
409L Stainless Steel Heat Treatment Foil Specification
| Thickness | 0.05mm – 8.0mm, etc. |
|---|---|
| Width | 600mm – 2000mm, the narrowed products pls check in strip products |
| Max coil weight | 25MT, etc. |
| Coil ID | 508mm,610mm, etc. |
| Finish | 2B, 2D, BA, No.4, HL, Mirror, 8k, Emboss, Etch, etc. |
| Packaging | Wooden pallets, waterproof paper |
| Service | Samples and MTC can be provided as per your requirements. |
| Origin |
China (Mainland)
|
SS 409 409l Chemical Composition
| Grade | C | Si | Mn | S | P | Cr | Ni | Ti |
|---|---|---|---|---|---|---|---|---|
| ss 409 | ≤0.08 | ≤1.0 | ≤1.0 | ≤0.03 | ≤0.045 | 10.5～11.7 | 0.5 Max | 6xC – 0.75 |
| ss 409l | ≤0.03 | ≤1.0 | ≤1.0 | ≤0.03 | ≤0.045 | 10.5～11.7 | 0.5 Max | 6xC – 0.75 |
Mechanical Properties of SS 409 Plate
| Property | Typical Value |
|---|---|
| Tensile Strength (MPa) | ≥ 380 |
| Yield Strength (MPa) | ≥ 170 |
| Elongation (%) | ≥ 20 |
| Hardness (HRB) | ≤ 88 |
| Density (g/cm³) | 7.75 |
409L Cold Rolled Stainless Steel Foil price per kg
The price of 409L cold rolled stainless steel foil typically ranges from $2.50 to $4.50 per kg, depending on factors such as thickness (commonly from 0.02mm to 0.5mm), surface finish (e.g., 2B, BA), order volume, and market fluctuations.
Click to get the latest price list
Supplier of stainless steel foil for heat treatment
With a monthly supply capacity of 600 tons and a minimum order quantity of 500 kg, we offer fast delivery within 3-7 days for stocked products and provide custom size services. Our products are exported to over 45 countries and regions.
409 Stainless Steel Foil - In Stock Supply
🔹Our 409 stainless steel foil adheres to stringent packaging standards to ensure the product remains intact during transportation. Each roll of stainless steel foil is professionally packaged as follows: Moisture-proof packaging: Each roll of stainless steel foil is wrapped in high-quality moisture-proof plastic film, effectively preventing moisture and contamination, ensuring the stability of the material during transportation.
🔹Marking and documentation: Each package is clearly labeled with product information, including dimensions, weight, production batch number, and quality inspection certificate.
🔹Shipping method: After the product is properly packaged, it will be shipped by sea, air, or land transportation depending on the destination. Typically, the shipping time is 3-7 days, depending on the destination.
🔹Our packaging not only meets international standards but also ensures the quality of each roll of stainless steel foil remains intact during transportation, ensuring that customers receive high-quality products.
Hot Tags: 409/409L Cold Rolled Stainless Steel Foil, China 409/409L Cold Rolled Stainless Steel Foil manufacturers, factory, stainless steel foil genuine product, stainless steel foil for disassembly, stainless steel foil quality, stainless steel foil best performance, stainless steel foil antique finish, stainless steel foil for coating
