310 310S Stainless Steel Foil
310S stainless steel foil is a high alloy content austenitic stainless steel with excellent high temperature resistance, oxidation resistance and corrosion resistance. It can work continuously at temperatures up to 1200℃, and the continuous use temperature can reach 1150℃.
Send E-mail:info@gneestainless.com
Tel:+8615824687445
Description
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of 310 310s stainless steel foil in China. With abundant experience, we warmly welcome you to wholesale customized 310 310s stainless steel foil from our factory. For price consultation, contact us.
310S stainless steel foil can withstand 1200°C for a long time, and 310 can withstand 1150°C, which is suitable for extreme environments such as furnace linings and kiln parts. It has 25% Cr + 20% Ni to form a dense oxide film, which is resistant to sulfide, carburization and high-temperature oxidation. The thickness is 0.02-0.5mm, the tolerance is ±0.01mm, and the surface finish is Ra≤0.8μm, which meets the needs of electronic components and aviation parts.

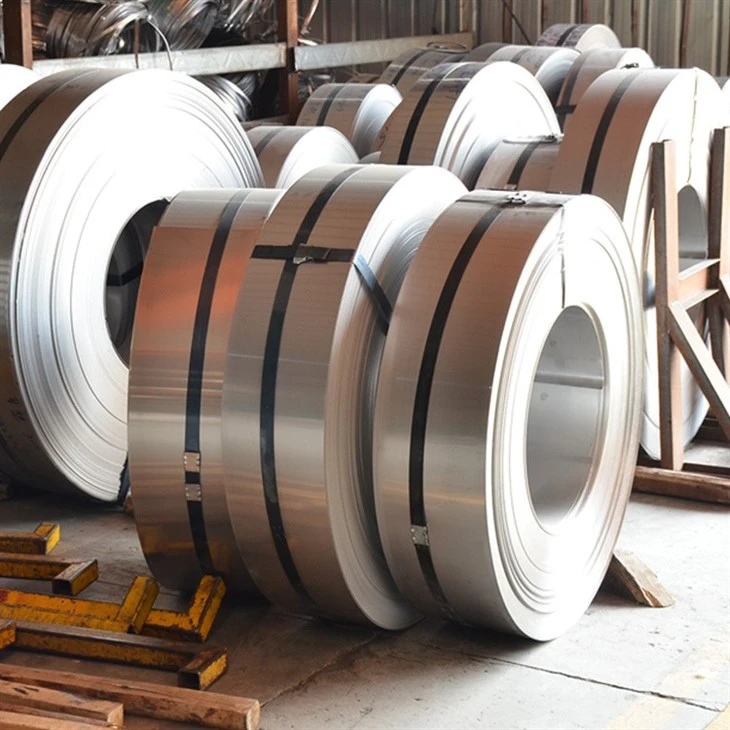

310S stainless steel foil
310 310S Stainless Steel Foil Specification
| Grade | Standard | Thickness | Maximum Service Temperature | Elongation |
|---|---|---|---|---|
| 310 | ASTM A240 | 0.05–0.5 mm | 1150°C | ≥40% |
| 310S | ASTM A240 | 0.05–0.5 mm | 1200°C | ≥45% |
| GRADES: | ||||
|---|---|---|---|---|
| ASTM: | DIN: | JIS: | UNS: | EN: |
| 310 | 1.4845 | SUS310 | S31000 | X8CrNi25-21 |
| 310S | 1.4845 | SUS310S | S31008 | X8CrNi25-21 |
| CHEMICAL COMPOSITION 310 VS 310S : | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| GRADE: | C%: | Mn% | P% | S% | Si% | Cr% | Ni% | Fe% | |
| 310 | ≤ 0.25 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 1.50 | 24.0 ~ 26.0 | 19.0 ~ 22.0 | Remainder | |
| 310S | ≤ 0.08 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 1.50 | 24.0 ~ 26.0 | 19.0 ~ 22.0 | Remainder | |
| stainless steel 310s sheets, coil, foil and plate specifications: | |
|---|---|
| SPECIFICATION: | ASTM A240 / SA240 |
| STANDARD | JIS, AISI, ASTM, DIN, GB, EN, ETC |
| SURFACE | 2B, CR, HR, 2D, NO.4, NO.8, MIRROR, BA, NO.1, CHEQUERED, HAIRLINE, BRUSH, ETCHING, ETC. |
| WIDTH | 1000MM, 1219MM, 1250 MM, 1500MM, 2000MM AND Even as per Customers Requirements |
| LENGTH | 2000MM, 2500MM, 3000 MM, 5000MM, 6000MM AND Even as per Customers Requirements |
| THICKNESS | 0.05MM TO 150 MM |
China ASTM A240 310 Stainless Steel Foil Supplier
FAQ
Q: Will 310S stainless steel foil rust?
A: It is stable in dry and high temperature environments, but contact with chlorides (such as seawater) may cause pitting corrosion.
Q: How to distinguish 310 and 310S foils?
A: Carbon content is detected by spectral analysis (310C≈0.25%, 310S≤0.08%).
