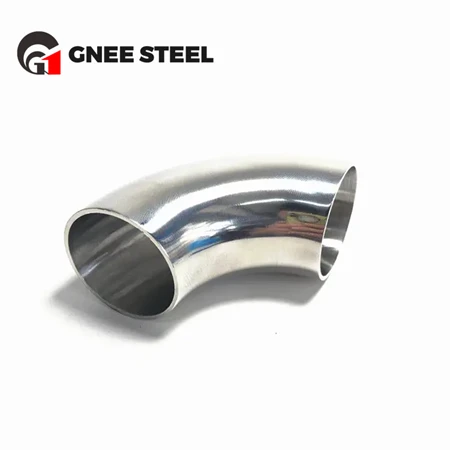

ASTM A403 310 SS Pipe Bends
ASTM A403 WP310 pipe fittings are forged and rolled austenitic stainless steel pipe fittings for pressure pipes, mainly used in butt-welding elbows, tees, crosses, reducers, pipe caps, flanged nipples and other products.
Send E-mail:info@gneestainless.com
Tel:+8615824687445
Description
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of astm a403 310 ss pipe bends in China. With abundant experience, we warmly welcome you to wholesale customized astm a403 310 ss pipe bends from our factory. For price consultation, contact us.
The main material of ASTM A403 WP310 pipe fittings is 310 stainless steel, which has excellent corrosion resistance and high temperature strength. Its manufacturing standards include ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, etc.
ASTM A403 SS WP310 Pipe Bend has a wide range of specifications, including different diameters and wall thicknesses. Common specifications include DN15-DN1220, wall thickness ranges from 3mm to 40mm, and pressure levels include SCH5, SCH10, SCH20, etc., suitable for various industrial applications.
ASTM A403 WP310 pipe fittings supplied by GNEE will undergo chemical composition analysis, mechanical property testing, non-destructive testing, etc. before leaving the factory to ensure product quality, safety and reliability.
ASTM A403 SS WP310 / 310S / 310H 10D Pipe Bend
SS 310 / 310S / 310H pipe bending manufacturing standards:
| ASME Pipe Bend | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN Pipe Bend | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN Pipe Bend | EN10253-1, EN10253-2 |
| ASTM A403 | ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Specifications : ASTM A403 & ASME SA403
Dimensions : ASME/ANSI B16.9 / B16.28 and MSS SP-43 / SP-75
Size : Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
Outer Diameter : 38.0 mm – 206.0 mm
Wall Thickness : 1.5 mm / 2.0 mm / 3.0 mm – greater wall thickness at request
Bend Radii : 75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm
Bending Radius(R): R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Bending angle (θ): 15°, 30°, 45°, 60°, 90°, 135°, 180°
ASTM A403 SS WP310 / 310S / 310H Welded Pipe Bend Supplier
SS 310 Pipe Bend Packaging
FAQ
1. Can I get free samples?
A: Yes, we can provide you the free sample, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, we can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
