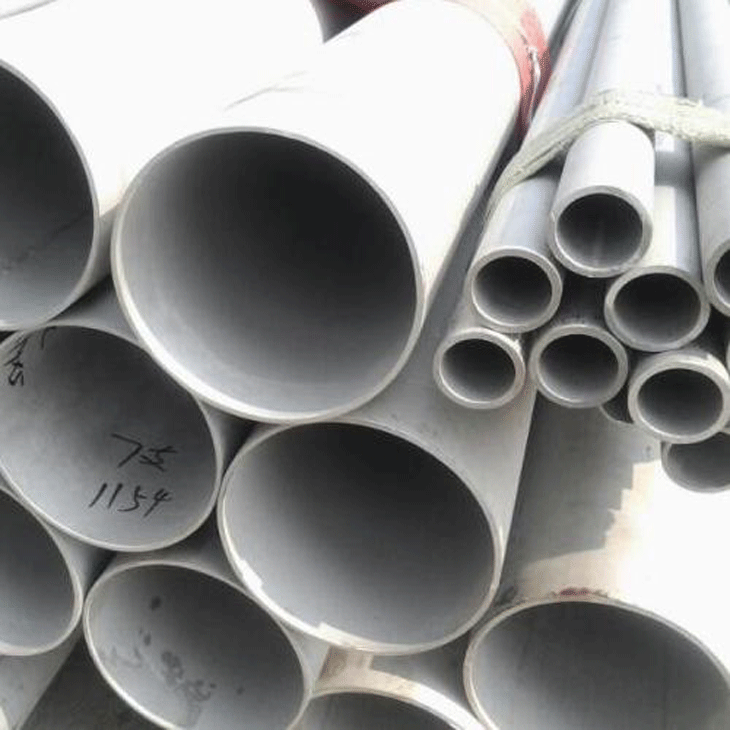

ASTM A312 Tp304l Stainless Steel Pipe
ASTM A312 Tp304l Stainless Steel Pipe is one of the most widely used steel pipes in the world for many reasons. The ASTM A312 Gr Tp304l is cheaper than most other stainless steel products and therefore is cost effective. It is an austenitic stainless steel and has chromium content in it. This...
Send E-mail:info@gneestainless.com
Tel:+8615824687445
Description
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of astm a312 tp304l stainless steel pipe in China. With abundant experience, we warmly welcome you to wholesale customized astm a312 tp304l stainless steel pipe from our factory. For price consultation, contact us.
304l ss pipe Description
ASTM A312 Tp304l Stainless Steel Pipe is one of the most widely used steel pipes in the world for many reasons. The ASTM A312 Gr Tp304l is cheaper than most other stainless steel products and therefore is cost effective. It is an austenitic stainless steel and has chromium content in it. This makes the ASTM A312 Grade Tp304l corrosion resistant. This quality is desired in most applications. The A312 Tp304l Pipe can be produced in different methods and it could come in different shapes as well. Gnee Steel is a large manufacturer and supplier of these pipes and we produce all kinds and variations of the product. Our A312 Tp304l Efw pipes are very strong and have long lasting joints because of the electric fusion weld. We also produce electric resistant welded pipes as well.
The applications of ASTM A312 Grade 304l are various. They are seen mostly in the food and beverages industry, cryogenic applications, sanitary and pressure containment applications as well. Because of the low carbon content in the ASME SA312 Type 304l is less strong than the ordinary 304 material. Nevertheless, the 304l Stainless Steel Pipe is widely used for the corrosion resistance. There are different variations such as the 304l Schedule 10 Stainless Steel Pipe which indicates the particular wall thickness to diameter. The 304l Stainless Steel Seamless Pipe and 304l Welded Pipe are used in unique applications according to the needs. We produce 304l Schedule 40 Pipe and other schedules and pressure classes of these pipes. You can get a full product list upon contacting us.
ASTM A312 TP304L Specification
ASTM A312 TP304L specification and properties
| Dimensional American Specifications | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| ASTM Specification | ASTM A312 / ASTM SA312 |
| Different Types and Shapes | Square, Hydraulic, Hex, Round, Honed, Rectangle |
| Manufacturing Type | ERW, CDW, 100% X Ray Welded, Welded, Seamless, Fabricated |
| Pipe Bevel End | Treaded Both Ends, Bevel small end, Plain Both Ends, Plain One End, Bevel one end, Bevel both ends, Beveled end, Bevel large end, Beveled One End, Treaded On End |
| Pipe With Delivery Condition | Annealed and Pickled, Cold Drawn, Polished, Bright Annealed |
| Types of Surface Finish | 2B, No.4, No.1, No.8 Mirror Finish or custom Finish as per customer Requirements |
| Wall Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Other Services we offer | Cutting, Beveling, Threading, Polishing, Ultrasonic Testing, Destructive, Non Destructive |
| Marking on ASTM A312 TP304L Pipe |
Specification Grade Nominal Pipe Sizes Pipe Schedule or Wall Thickness Manufacturing Method (Seamless / Welded) Heat Number Supplier/ Manufacturer's Name or Custom Logo - on request |
SA 312 TP Stainless Steel Pipe Mechanical Properties
| SUS | Tensile Strength minimum (MPa) | Yield Strength 0.2% Proof minimum (MPa) | Elongation minimum (% in 50mm) | Hardness | |
| Rockwell B (HR B) maximum | Brinell (HB) maximum | ||||
| 304L | 485 | 170 | 40 | 92 | 201 |
ASTM A312 TP304L Chemical Composition
| SS | Si | C | Mn | Cr | P | S | Mo | Ni | N | |
| TP 304L | min. | - | - | - | 18.0 | - | - | - | 8.0 | - |
| max. | 1.00 | 0.03 | 2.0 | 20.0 | 0.045 | 0.03 | 12.0 | - | ||
A312 TP304L Equivalent
| GRADE | UNS | EN | JIS | AFNOR | BS | WERKSTOFF NR. | GOST | SS |
| USA | EUROPE | JAPAN | RUSSIAN | BRITISH | GERMAN | RUSSIAN | SWEDISH | |
| SS 304L | S30403 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | Z3CN18‐10 | 304S11 | 1.4306/1.4307 | 03Х18Н11 | 2332 |
customer case
FAQ
Q: What product information must I provide before purchasing?
A:Please provide the grade, width, thickness, surface treatment requirements and the quantity you require.
Q: What shipping ports are there?
A:We usually ship from Shanghai, Tianjin, Qingdao and Ningbo ports.
Q: What are your payment terms?
A:30% T/T in advance, 70% balance before shipment or based on copy of bill of lading or L/C at sight.
Q: What about product pricing information?
A:Prices vary due to regular changes in raw material prices.
Q: Can I send samples?
A:Of course, we provide free samples and express delivery to customers all over the world.
