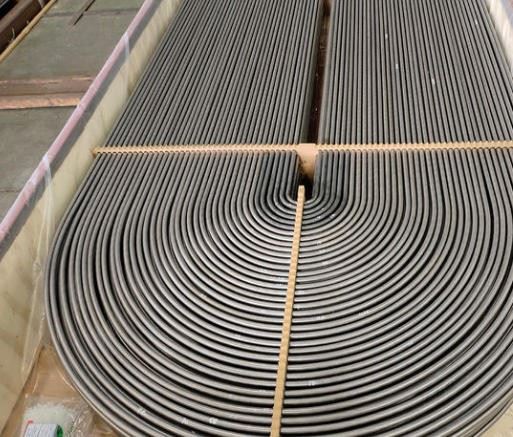

ASME SA213 TP304L Seamless U Bend Tube For Boiler
Standard: ASTM A213/ ASME SA 213
Grades: TP304 / 304L
Delivery Condition:Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn
Size Range:6.53 to127 mm
Length:up to 20 m (65.62 ft) or Custom as required
Stainless Steel Heat Exchanger Tubes Bending radii:1.25 x OD up to 1700mm
Wall Thickness Range:0.5 - 5 mm
Tolerance:+/-0.05 Mm
Stock: in Stock
Sample：Available
Transport Package: Standard Sea-Worthy Packing
Send E-mail:info@gneestainless.com
Tel:+8615824687445
Description
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of asme sa213 tp304l seamless u bend tube for boiler in China. With abundant experience, we warmly welcome you to wholesale customized asme sa213 tp304l seamless u bend tube for boiler from our factory. For price consultation, contact us.
ASTM A213/ASME SA213 TP304 is the standard specification for seamless ferritic and austenitic alloy steel boiler, superheater, and heat exchanger tubes. A U-bend tube is a specialized tube designed for heat exchangers, formed into a U-shape to facilitate efficient heat transfer.
ASME SA213 TP304 U-bend tube is made from TP304 stainless steel, an austenitic stainless steel grade. These tubes are manufactured by cold bending straight tubes into the required U-shape using specialized bending machines. They are commonly used in applications that require transferring heat from one fluid to another, such as in boilers, heat exchangers, and condensers.
Available in a wide range of sizes and wall thicknesses, TP304 U-bent tubes can be customized to meet the specific requirements of different industrial applications.
Applications:
ASTM A213 TP304L stainless steel pipes are widely used in heat exchangers, condensers, evaporators, and oil systems in industries such as power generation, petrochemical, and HVAC, where corrosion resistance, thermal stability, and leak-free performance are critical.
ASTM A213 TP304L Stainless Steel U Bend Tube Specifications:
| Seamless Stainless Steel Heat Exchanger Tube Standard | ASTM A213/ ASME SA 213 |
| Stainless Steel Heat Exchanger Tubes grades | TP304 / 304L, TP316, TP316L, |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Size Range | 6.53 to127 mm |
| Length | up to 20 m (65.62 ft) or Custom as required |
| Stainless Steel Heat Exchanger Tubes Bending radii | 1.25 x OD up to 1700mm |
| Wall Thickness Range | 0.5 - 5 mm |
| Tolerance | +/-0.05 Mm |
| Value Added Services for Stainless Steel Heat Exchanger Tubes |
Cutting Beveling Threading Polishing (Electro & Commercial) Draw & Expansion as per required Size & Length Destructive and Non Destructive Ultrasonic Testing Annealed & Pickled Bending |
| END | Plain End, Beveled End, Treaded |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding |
| SS Heat Exchanger Tubes Test Certificate |
EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC) 100% Radiography Test Report Raw Materials Certificate Third Party Inspection Report Fumigation Certificates Heat Treatment Charts HS Code Commercial Invoice Form A for Generalized System of Preferences (GSP) Manufacturer Test Certificate Moisture testing Surface roughness measurement |
ASTM A213 TP304L Stainless Steel U Bend Tube Chemical Composition
| C≤ | Mn≤ | P≤ | S≤ | Si≤ | Cr | Ni |
| 0.035 | 2 | 0.045 | 0.03 | 1 | 18-20 | 8-12 |
Mechanical Properties of TP304L Stainless Steel pipe
| Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Hardness max | |
| 485min | 170min | 35min | 192HBW/200HV |
90 HRB |
|
1. Common Outer Diameter & Standard Wall Thickness (Metric / BWG) |
|||
|
Outer Diameter OD(mm) |
Regular Wall Thickness WT(mm) |
Corresponding BWG |
Main Application Industries |
|
10 |
1.0/1.2/1.5 |
22/20/18 |
Small refrigeration, precision pharmaceutical, small kettle internal coils |
|
14 |
1.2/1.5/2.0 |
20/18/16 |
Central air conditioning, small hot water units, food sterilization |
|
19 |
1.5/2.0/2.5 |
18/16/14 |
Small chemical heat exchangers, lithium battery temperature control, HVAC chillers |
|
25.4 (1 inch) |
1.65/2.11/2.77 |
16/14/12 |
Power plant high & low pressure heaters, seawater desalination, petrochemical (most universal) |
|
32 |
2.0/2.5/3.0 |
14/12/10 |
Oil refining, waste heat recovery, large chemical plants |
|
38.1 |
2.11/2.77/3.05 |
14/12/10 |
Thermal power condensers, offshore platform coolers |
|
45 |
2.5/3.0/3.5 |
12/10/9 |
Large coal chemical industry, geothermal heat exchange equipment |
|
50.8 |
2.77/3.40 |
12/10 |
Boiler waste heat recovery, high-pressure process heat exchangers |
|
2.Standard Bend Radius Comparison Table (Centerline Radius) |
|||
|
OD(mm) |
Standard R=2D(mm) |
Limit R=1.5D(mm) |
Operation Instructions |
|
10 |
20 |
15 |
Only TP304 available for 1.5D, stress relief annealing required after bending |
|
14 |
28 |
21 |
Prioritize R=2D for general heat exchange |
|
19 |
38 |
28.5 |
Thin-wall tubes not recommended for R=1.5D |
|
25.4 |
50.8 |
38.1 |
Main specification for chemical & power plants |
|
32 |
64 |
48 |
Select R≥2.5D for thick-wall high-pressure service |
|
38.1 |
76.2 |
57.15 |
R≥2D is recommended for large diameter tubes |
|
45 |
90 |
67.5 |
Duplex steel forbidden for cold bending at R=1.5D |
|
50.8 |
101.6 |
76.2 |
R≥3D is preferred |
|
Radius Selection Rules |
|||
|
Stainless Steel U-Tube Linear Mass Table (kg/m) |
|||||||||
|
Outside Diameter |
Birmingham wire Gauge Conversion from BWG to mm |
||||||||
|
20 BWG |
19 BWG |
18 BWG |
17 BWG |
16 BWG |
14 BWG |
12 BWG |
10 BWG |
||
|
mm |
inch |
0.89 mm |
1.07 mm |
1.24 mm |
1.47 mm |
1.65 mm |
2.11 mm |
2.77 mm |
3.4 mm |
|
6.35 |
1/4 |
0.121 |
0.141 |
0.158 |
0.179 |
0.193 |
- |
- |
- |
|
9.53 |
3/8 |
0.192 |
0.225 |
0.256 |
0.295 |
0.324 |
0.39 |
0.466 |
- |
|
12.7 |
1/2 |
0.262 |
0.31 |
0.354 |
0.411 |
0.454 |
0.557 |
0.685 |
0.788 |
|
15.88 |
5/8 |
0.332 |
0.395 |
0.452 |
0.528 |
0.585 |
0.724 |
0.905 |
1.057 |
|
19.05 |
3/4 |
0.403 |
0.479 |
0.55 |
0.644 |
0.715 |
0.89 |
1.123 |
1.325 |
|
25.4 |
1 |
0.543 |
0.648 |
0.746 |
0.876 |
0.976 |
1.224 |
1.561 |
1.863 |
|
31.75 |
1 1/4 |
0.684 |
0.818 |
0.942 |
1.109 |
1.237 |
1.558 |
2 |
2.401 |
|
38.1 |
1 1/2 |
- |
0.987 |
1.139 |
1.341 |
1.498 |
1.892 |
2.438 |
2.939 |
|
44.5 |
1 3/4 |
- |
1.158 |
1.336 |
1.576 |
1.761 |
2.228 |
2.879 |
3.481 |
|
50.8 |
2 |
- |
1.325 |
1.531 |
1.806 |
2.02 |
2.559 |
3.314 |
4.014 |
|
63.5 |
2 1/2 |
- |
- |
- |
2.271 |
2.542 |
3.227 |
4.19 |
5.09 |
|
76.2 |
3 |
- |
- |
- |
- |
3.064 |
3.894 |
5.067 |
6.166 |
|
88.9 |
3 1/2 |
- |
- |
- |
- |
3.586 |
4.562 |
5.943 |
7.241 |
|
101.6 |
4 |
- |
- |
- |
- |
4.108 |
5.229 |
6.819 |
8.317 |
|
114.3 |
4 1/2 |
- |
- |
- |
- |
- |
5.897 |
7.696 |
9.393 |
Our Stainless Steel U bend Tube / U bent Stainless Steel tubes included ASTM A213 ASME SA213 TP304 TP304L TP304H TP316 TP316L TP316Ti TP317 TP317L TP317LMN TP321 TP321H TP347H TP309S TP310S TP310H 904L N08904 254SMo S31254, ASME SA789 S31803 S32205 S32750 S32304 S32760 S32101.
Fully compliant with ASTM A213/ASME SA213 standards, with options for mill test certificates (EN 10204 3.1) and third-party inspection reports to ensure traceability and adherence to international quality requirements.
Product Testing
GNEE Stainless Steel is a specialized manufacturer of Stainless Steel U Bend Tube / Stainless Steel U bent Tubes for U Tube Heat Exchanger (U bent Stainless Steel Tube for U bent Tube Heat Exchanger). Our U Bend Tube Tube-bending production line, installed in 2008. Solution annealing after bending will be processed to lower the residual stress, and followed by Hydrostatic testing/Pneumatic test and Dye Penetrant testing if required.
Packaging
All tubing shall be packaged and blocked in such a manner as to prevent damage in ordinary handling and transportation. The boxes shall be constructed in such a manner that no nails, staples, screws, or similar fasteners are required to close and secure the box after the tubes have been placed in the box. The box shall be lined with plastic sheet or vapor barrier materials so as to prevent chloride contamination of the tube during handling, transportation, and storage.
