ASTM A269 TP316L Stainless Steel Tubing
Standard: ASTM A269 / ASME SA269
Grade: TP316L
UNS Number: S31603
Product Type: Seamless stainless steel coiled tubing
Manufacturing Process: Cold-drawn / Cold-rolled / Seamless
Heat Treatment: Solution annealed
Surface Finish: Bright Annealed (BA) / Annealed and Pickled
Outer Diameter (OD): 3.0–50.8 mm
Wall Thickness: 0.3–5.0 mm
Coil Length: 10–1,000 m/coil (depending on OD and wall thickness)
Packaging: Steel rack / Wooden reel / Waterproof film / Seaworthy export packaging
Send E-mail:info@gneestainless.com
Tel:+8615824687445
Description
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of astm a269 tp316l stainless steel tubing in China. With abundant experience, we warmly welcome you to wholesale customized astm a269 tp316l stainless steel tubing from our factory. For price consultation, contact us.
If you are looking for high-pressure instrumentation tubing that effectively reduces field welds, accommodates long-distance seamless installation, and offers exceptional corrosion resistance, ASTM A269 TP316L cold drawn stainless steel seamless coil tube is the ideal choice for offshore oil and gas, chemical injection, subsea umbilical cables, and semiconductor gas distribution systems.
ASTM A269 TP316L stainless steel tubing contains Cr 16.0%–18.0%, Ni 10.0%–14.0%, and Mo 2.0%–3.0%. Its ultra-low carbon control (C ≤ 0.030%) completely eliminates the risk of intergranular corrosion, while the added molybdenum gives it a Pitting Resistance Equivalent Number (PREN ≥ 25) far superior to standard 304L, ensuring outstanding performance in aggressive environments such as chloride-bearing media and marine atmospheric conditions.
Our ASTM A269 TP316L stainless steel coil tubes are processed through precision cold drawing and bright annealing (BA) under a protective hydrogen atmosphere, resulting in superior wall thickness uniformity, strict outer diameter tolerances within ±0.05 mm, and internal surface roughness Ra ≤ 0.4 μm. Achieving a minimum tensile strength of 485 MPa, yield strength of 170 MPa, elongation ≥ 35%, and hardness ≤ 90 HRB, they provide an exceptionally high burst pressure safety factor and excellent bending formability.
GNEE supplies ASTM A269 TP316L seamless coil tubes with outer diameters ranging from 3.18 mm to 25.4 mm (1/8" to 1") and wall thicknesses from 0.5 mm to 2.11 mm. A single continuous coil without welds can reach lengths from 300 meters up to 2,000 meters, significantly lowering installation costs and potential leak risks. We also offer coil rewinding, pressure testing, and wooden crate packaging delivery. Every batch passes 100% pneumatic testing, hydrostatic testing, or eddy current testing (ET), accompanied by EN 10204 3.1 Mill Test Certificates.
ASTM A269 Stainless Steel coils Pipe specification
|
Product Name |
ASTM A269 TP316L 6x1 mmCold Drawn Stainless Steel Seamless Tube Coil Tube |
|
Outer diameter: |
3/16" - 1 1/4" (4.76-31.8mm) |
|
Wall thickness : |
0.028"-0.083" (0.7mm-2.11mm) |
|
Length: |
Single Coil Length: 50 m ~ 1500 m (customized) |
|
Weight: |
Coil weight: 80–120 kg per coil (varies by OD and wall thickness); coils ≤28 kg offer best cost efficiency |
|
Delivery Condition: |
Bright Annealed (BA) (Standard); Pickled & Passivated / Electropolishing optional |
|
Hardness: |
Soft annealed max. 90 HRB |
|
Specification Tolerance: |
±10 μm |
|
Tubing's Marking: |
GH-STEEL, TP304 SMLS BA ASTM A269 9.53 × 0.89 MM HEAT NO. |
Chemical Composition Of ASTM A269 GR TP316L ERW Tubing
| GRADE |
C |
MN |
SI |
P |
S |
CR |
MO |
NI |
N |
|
|---|---|---|---|---|---|---|---|---|---|---|
|
316L |
Min |
- |
- |
- |
- |
- |
16.0 |
2.00 |
10.0 |
- |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
Mechanical Properties Of ASTM A269 GR TP316L Round Tubing
| GRADE | TENSILE STR (MPA) MIN |
YIELD STR 0.2% PROOF (MPA) MIN |
ELONG (% IN 50MM) MIN |
HARDNESS | |
|---|---|---|---|---|---|
| ROCKWELL B (HR B) MAX | BRINELL (HB) MAX | ||||
|
316L |
485 |
170 |
40 |
95 |
217 |
Weight per Meter (kg/m) of 316L Stainless Steel Seamless Coiled Tubes
|
Outside Diameter |
Birmingham wire Gauge Conversion from BWG to mm |
||||||||
|
22 BWG |
20 BWG |
18 BWG |
16 BWG |
14 BWG |
12 BWG |
10 BWG |
|
||
|
mm |
inch |
0.71mm |
0.89 mm |
1.24 mm |
1.65 mm |
2.11 mm |
2.77 mm |
3.4 mm |
|
|
6.35 |
1/4" |
0.1 |
0.121 |
0.158 |
0.193 |
– |
– |
– |
|
|
9.53 |
3/8" |
0.156 |
0.192 |
0.256 |
0.324 |
0.39 |
0.466 |
– |
|
|
12.7 |
1/2" |
0.212 |
0.262 |
0.354 |
0.454 |
0.557 |
0.685 |
0.788 |
|
|
15.88 |
5/8" |
0.268 |
0.332 |
0.452 |
0.585 |
0.724 |
0.905 |
1.057 |
|
|
19.05 |
3/4" |
0.324 |
0.403 |
0.55 |
0.715 |
0.89 |
1.123 |
1.325 |
|
|
25.4 |
1" |
– |
0.543 |
0.746 |
0.976 |
1.224 |
1.561 |
1.863 |
|
|
31.75 |
1 1/4" |
– |
0.684 |
0.942 |
1.237 |
1.558 |
2 |
2.401 |
|
|
38.1 |
1 1/2" |
– |
– |
1.139 |
1.498 |
1.892 |
2.438 |
2.939 |
|
|
44.5 |
1 3/4" |
– |
– |
1.336 |
1.761 |
2.228 |
2.879 |
3.481 |
|
|
50.8 |
2" |
– |
– |
1.531 |
2.02 |
2.559 |
3.314 |
4.014 |
|
|
63.5 |
2 1/2" |
– |
– |
– |
2.542 |
3.227 |
4.19 |
5.09 |
|
|
76.2 |
3" |
– |
– |
– |
3.064 |
3.894 |
5.067 |
6.166 |
|
|
88.9 |
3 1/2" |
– |
– |
– |
3.586 |
4.562 |
5.943 |
7.241 |
|
|
101.6 |
4" |
– |
– |
– |
4.108 |
5.229 |
6.819 |
8.317 |
|
|
114.3 |
4 1/2" |
– |
– |
– |
– |
5.897 |
7.696 |
9.393 |
|
ASTM A269 Standard Dimensional Tolerance
|
Standard |
Outside Diameter Tolerance(mm) |
Thickness Tolerance |
Length Tolerance |
|
|
ASTM A269 |
D<12.7 mm |
± 0.13 mm |
±15% |
+3.2/-0 mm |
|
> 12.7 mm to 38.1 mm |
± 0.13 mm |
± 10% |
+3.2/-0 mm |
|
|
> 38.1 mm to 88.9 mm |
± 0.25 mm |
± 10% |
+4.8/-0 mm |
|
|
> 88.9 mm to 139.7 mm |
± 0.38 mm |
± 10% |
+4.8/-0 mm |
|
|
> 139.7 mm to 203.2 mm |
± 0.76 mm |
± 10% |
+4.8/-0 mm |
|
If you need help, tell me:
What outer diameter and wall thickness do you need?
What application or fluid will pass through the tube?
Quality Control
For ASTM A269 TP316L Cold Drawn Stainless Steel Seamless Coil Tubes, GNEE applies strict quality control covering chemical composition, dimensional accuracy, surface condition, mechanical properties and hardness. Each tube is subjected to hydrostatic testing or nondestructive electric testing as required by ASTM A269, while seamless coiled tubing also receives flaring and hardness testing according to the applicable lot requirements. For critical orders, 100% eddy current testing, additional hydrostatic testing and third-party inspection can be arranged. Each batch can be supplied with an EN 10204 3.1 MTC for heat-number traceability.
Standard export packaging

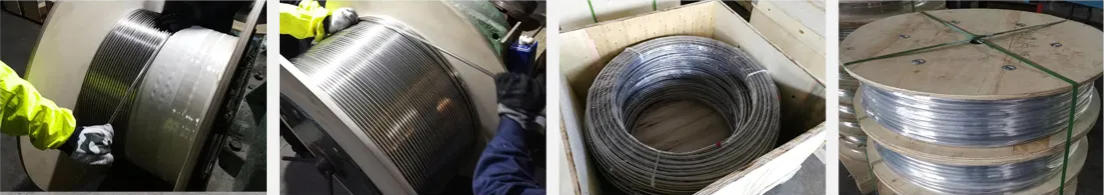

GNEE uses seaworthy export packaging designed to protect the continuous coil from moisture, deformation, contamination and surface damage during long-distance transportation. Each coil can be secured on a steel or wooden frame, wrapped with waterproof film and protected with plastic end covers where applicable. For precision cold-drawn tubes, additional anti-scratch and moisture protection can be applied. Package markings can include TP316L, ASTM A269, tube OD, wall thickness, coil length, quantity, heat number and PO number, maintaining clear identification and traceability throughout shipment.
