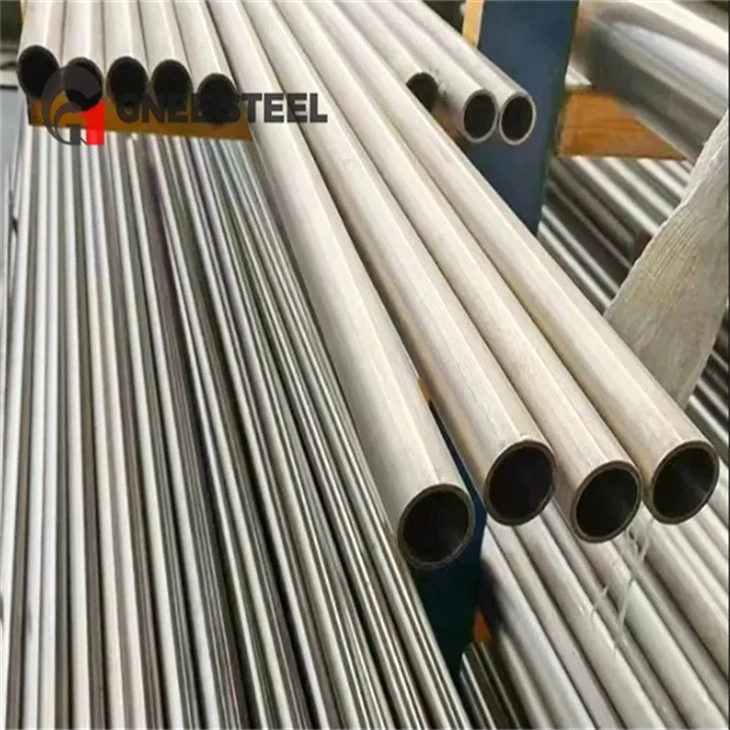

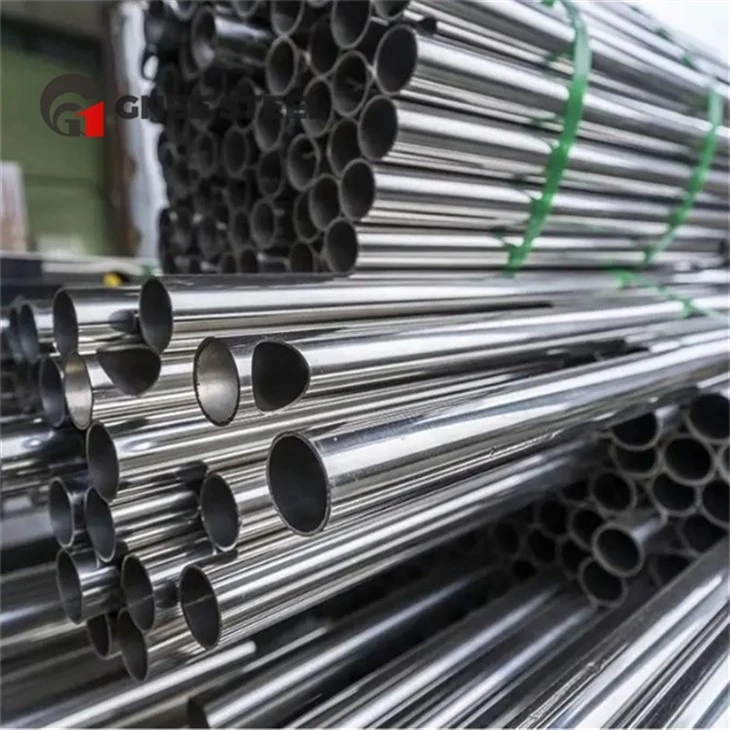

ASTM A376 TP321 Austenitic Seamless Steel Pipe
Name：ASTM A376 TP321 Austenitic Seamless Steel Pipe
Certification：ISO, RoHS, IBR, AISI, ASTM, GB, EN, DIN, JIS
Shape：round
Technique：Cold Rolled/Hot Rolled
Surface Treatment：Sanded /Mirror/Hairline Brushed
Thickness：0.3-30mm
out Diameter：8-219mm
Length：5.8/6m or Custom
Stock：in Stock
Sample：Available
Transport Package：Standard Sea-Worthy Packing
Send E-mail:info@gneestainless.com
Tel:+8615824687445
Description
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of astm a376 tp321 austenitic seamless steel pipe in China. With abundant experience, we warmly welcome you to wholesale customized astm a376 tp321 austenitic seamless steel pipe from our factory. For price consultation, contact us.
ASTM A376 TP321 is a seamless austenitic stainless steel pipe specifically designed for high-temperature service. Known for its excellent thermal stability, this specification covers multiple grades, including TP321 and the high-carbon TP321H grade.
We supply ASTM A376 TP321 seamless stainless steel pipes in a wide range of dimensions. The outside diameter is available from 1/2 inch to 30 inches, with wall thickness schedules including SCH5S, SCH10S, SCH40S, and SCH80S. Average wall thickness can also be customized according to customer requirements.
Our ASTM A376 347/347H seamless stainless steel pipes are produced through cold working, followed by heat treatment, pickling, and passivation. Pipe ends can be supplied as beveled ends or plain ends.
ASTM A376 TP321/321H seamless stainless steel pipes offer excellent corrosion resistance, preventing carbide precipitation within the temperature range of 430°C to 816°C (800°F to 1500°F), thereby enhancing resistance to intergranular corrosion.
Specifications
| Standard | ASTM A376 |
|---|---|
| Stainless Steel | 304, 316, 321, 347, 347H |
| Pipe Type | Seamless Pipe |
| Finishes | Annealed pickling, bright annealing |
| Outside Diameter | 1/8 Inch To 30 Inch, NPS |
| Thickness | Sch 5, Sch 5S, Sch 10S, Sch 40S, Sch 80S, Sch 160 |
| Application | high-temperature central-station service |
ASTM A376 TP321 Seamless pipe Chemical Composition
The titanium content shall be not less than five times the carbon content and not more than 0.70 %.
|
Grade |
UNS Designation |
Carbon |
Manganes, max |
Phosphoru, max |
Sulfur, max |
Silicon, max |
Nickel |
Chromium |
Molybdenum |
Nitrogen (A) |
Others |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP321 |
S32100 |
0.08 max |
2 |
0.045 |
0.03 |
0.75 |
9.0–13.0 |
17.0–19.0 |
… |
… |
(B) |
ASTM A376 TP321 round pipe Tensile Requirements
| Grade | Tensile (A) Strength, min, ksi [MPa] | Yield Strength, min, ksi [MPa] | Elongation in 2 in. or 50 mm (or 4D) min, % | |
|---|---|---|---|---|
| Longitudinal | Transverse | |||
| TP321, TP321H | 75 [515] | 30 [205] | 35 | 25 |
| 70 [480] | 25 [170] | 35 | 25 | |
Product Testing
Nondestructive Testing: 100% radiographic testing (RT) or ultrasonic testing (UT) in accordance with ASTM E164/E213; weld penetrant testing (PT) in accordance with ASTM E165
Pressure Testing: Hydrostatic testing at ≥1.5 times the design pressure in accordance with the general requirements of ASTM A450
Surface Quality: Ensure the absence of cracks, lack of fusion, and other defects, and the inner surface should have a smooth transition.
SS 321 stianless pipe supplier
Packaging
Protection: 1.Inter paper available 2.PVC protecting film available
Export Packing: Waterproof paper, and steel strip packed. Standard Export,Seaworthy Package.Suit for all kinds of transport,or as required.
Customer visit and sign the order
