321 Stainless Steel Perforated Sheets

Name: China 321 Stainless Steel Perforated Sheets Manufacturers Factory - Good Price - GNEE
Brand: GNEE
SKU: 300849938

Name：321 stainless steel perforated sheets
Grade：300 Series
Certification：ISO, RoHS, IBR
Stock：a Large Quantity Stock
Specification：as your requirements
Production Capacity：1000tons/Week
Hole ShapesRound, Square, Slotted, Hexagonal, Rectangular
Hole Diameter (D)：0.5 mm to 100 mm
Pitch (P)：Center-to-center distance
Hole Pattern：60° Staggered (Standard), 45° Staggered, Straight Line
Open Area (%)：10% – 70%
Margins Standard ：(No-holes area on edges) or Perforated-to-edge
Export Package: Iron Pallets with Waterproof Paper

Have questions? GNEE sales representatives are available for live chat now

Send E-mail:info@gneestainless.com

Tel:+8615824687445

Send Inquiry Chat Now

Description

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of 321 stainless steel perforated sheets in China. With abundant experience, we warmly welcome you to wholesale customized 321 stainless steel perforated sheets from our factory. For price consultation, contact us.

321 stainless steel perforated sheets Exporter

GNEE has over 18 years of professional experience in manufacturing 321 stainless steel perforated sheets, with an annual export volume exceeding 2,500 tons. Our products are exported to more than 70 countries and regions worldwide. The 321 perforated sheet (UNS S32100 / 1.4541) is strictly produced in compliance with ASTM A240 / ASME SA240 standards, using precision CNC punching technology (hole diameter range: 0.5–30 mm). We implement strict ISO quality control systems and hold full international certifications including CE, SGS, and EN 10204 3.1 MTC.

GNEE uses high-quality 321 stainless steel coils as the base material. Through precision perforation processing, titanium (Ti ≥ 5×C%) is added to effectively stabilize carbon, providing excellent resistance to intergranular corrosion in the sensitization temperature range of 450–850°C, significantly outperforming 304 stainless steel. Its high-temperature strength is also superior to conventional austenitic stainless steels, with continuous service temperatures up to 900°C and intermittent service up to 925°C.

321 Stainless Steel Perforated Sheets

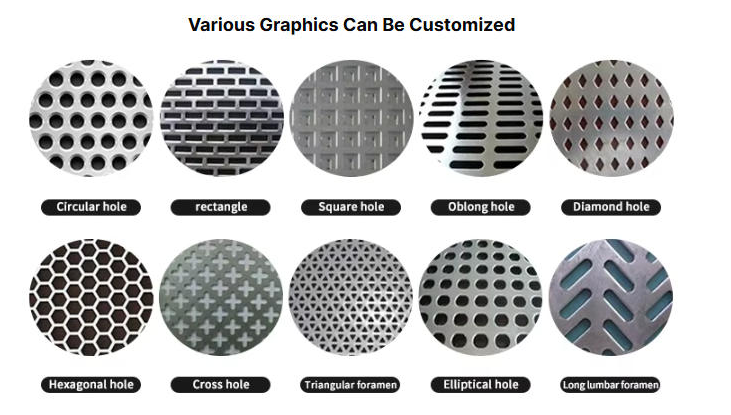

We support customization of various hole types (round, square, diamond, hexagonal, etc.), hole diameters, pitches, and arrangements (straight or staggered patterns). The open area can be flexibly adjusted according to design requirements, typically ranging from 15% to 60%, ensuring optimal balance between functionality (filtration, screening, ventilation, decoration) and structural strength and aesthetics.

321 perforated stainless steel sheets

321 perforated stainless steel sheets are available in thicknesses from 0.5 mm to 6.0 mm, with a maximum processing width of up to 1500 mm. Each batch can be supplied with an EN 10204 3.1 material certificate, and hole size inspection reports can be provided upon request, ensuring consistent quality and reliability.

buy 321 perforated stainless steel sheet online

UNS S32100 perforated sheet specification

ASTM A240 321 perforated sheet specification

Item / Parameter	Specification / Range
Grade	AISI 321 / UNS S32100 / 1.4541 / SUS 321
Type	Titanium-stabilized austenitic stainless steel
Standards	ASTM A240, ASTM A240M, EN 10088-2
Primary Advantage	Excellent resistance to intergranular corrosion in high-temperature environments (427–816°C)
Thickness	0.5 mm – 10.0 mm (24 Gauge – 3/8")
Width	1000 / 1219 / 1250 / 1500 mm (36" / 48" / 50" / 60")
Length	2000 / 2438 / 3000 / 6000 mm (80" / 96" / 120" / 240")
Tolerances	According to ASTM A480
Hole Shapes	Round, Square, Slotted, Hexagonal, Rectangular
Hole Diameter (D)	0.5 mm – 50 mm
Pitch (P)	1.0 mm – 100 mm
Arrangement	60° Staggered (Standard), 45° Staggered, Straight Line
Open Area (%)	10% – 70%
Margins	Standard (20 mm) or No-margin (full perforation)

Mechanical & Physical Properties (At Room Temp)

Property	Metric Value	Imperial Value
Tensile Strength (Rm)	≥ 515 MPa	≥ 75 ksi
Yield Strength (Rp 0.2)	≥ 205 MPa	≥ 30 ksi
Elongation (A50mm)	≥ 40%	≥ 40%
Hardness (Brinell/Rockwell)	≤ 217 HBW / 95 HRB	Max limits
Density	7.92 g/cm³	0.286 lb/in³
Melting Point	1398 – 1446 °C	2550 – 2635 °F

Chemical Composition (%)

Element	C	Mn	Si	P	S	Cr	Ni	Ti	N
Min	-	-	-	-	-	17.0	9.0	5×(C+N)5×(C+N)	-
Max	0.08	2.0	0.75	0.045	0.03	19.0	12.0	0.70	0.10

Applications of ASTM 321 Perforated Sheet

High-Temperature Industrial Process Equipment: Commonly used in the fabrication of furnace components, heat exchanger shells, and furnace trays.
Aerospace and Automotive Exhaust Systems: Applied in jet engine components, aircraft exhaust ducting, firewalls, and turbocharger assemblies.
Filtration and Screening: These sheets are frequently used to manufacture industrial screens, specialized drying screens for food processing machinery, and filtration devices for petrochemical production processes.
Architecture and Structural Infill: Employed in structural applications within high-temperature environments, such as ventilation systems, decorative ceilings, and architectural facade infill panels.

If you have project-specific requirements for Perforated Sheet 321, we welcome your orders. GNEE maintains a substantial inventory of best-selling products for you to choose from.

Contact now

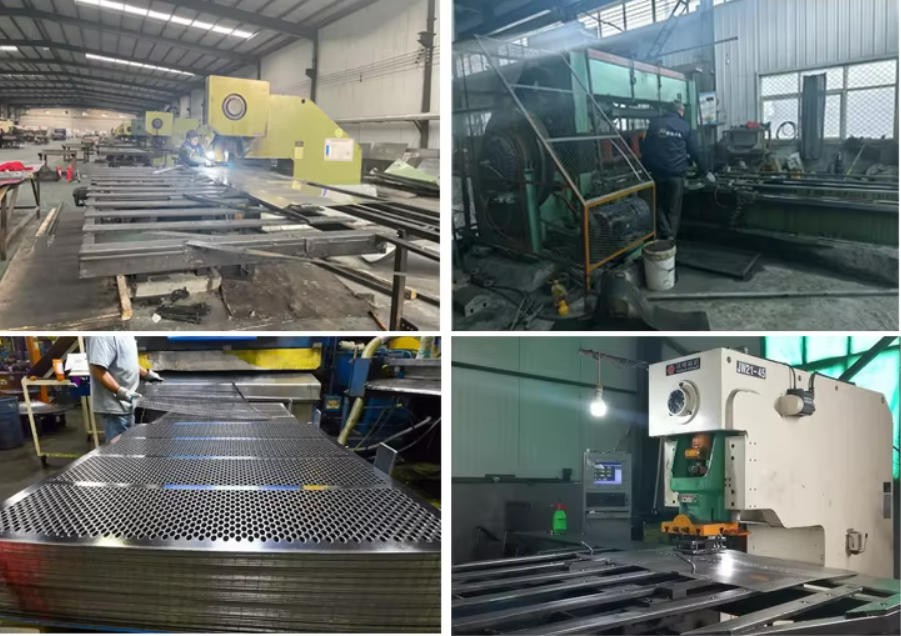

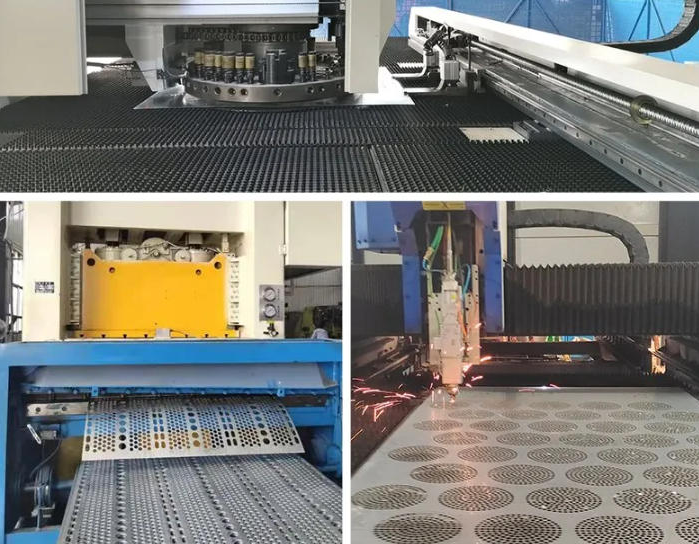

321 stainless steel perforated sheet factory China

Gnee offers professional leveling processes to ensure that delivered metal sheets possess a perfectly flat surface, facilitating subsequent welding or installation.

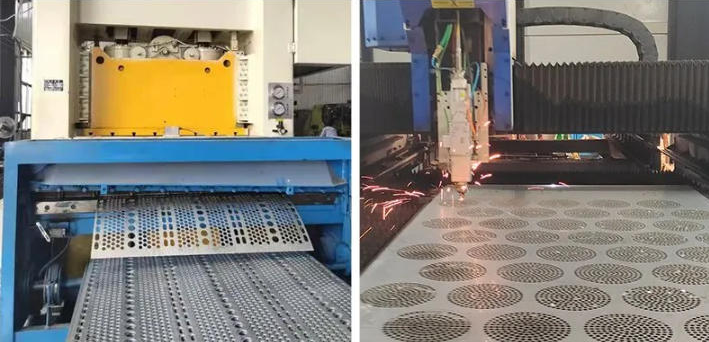

CNC Punching: Utilizing advanced, high-speed CNC punching machines, we achieve high precision in hole positioning and excellent consistency in hole diameter.
Precision Leveling: Metal sheets often develop internal stress and deformation following the punching process.
Deburring and Surface Treatment: We provide edge grinding and deburring services, with the following surface finishes available: 2B, No.1, Polished, or Brushed.

GNEE Packaging and Shipping

Reinforced Packaging: We utilize waterproof paper, steel strapping, and wooden or metal pallets to prevent moisture damage, oxidation, or corner impact during transit.
Global Delivery: Leveraging our extensive export experience, Gnee offers a wide range of trade terms-from FOB, CFR, and CIF to DDP-covering sea freight, air freight, and land transport via the China-Europe Railway Express.
