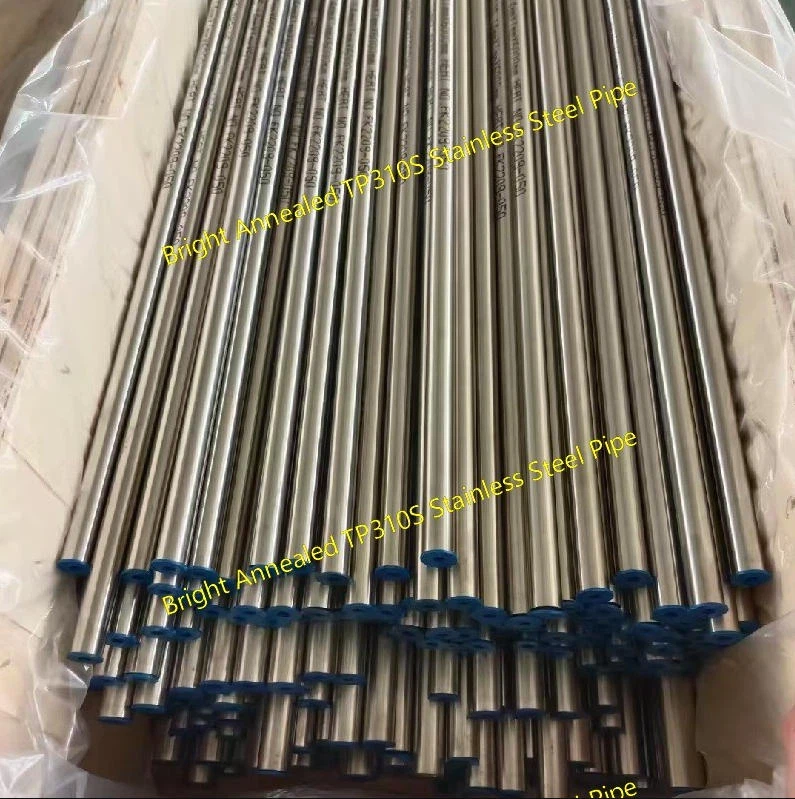

ASTM A269 TP310s Stainless Steel Bright Annealed Pipe

As a professional supplier and manufacturer of stainless steel tubing, GNEE exports to over 50 countries annually. We recognize that the standard production lead time for 310S BA (Bright Annealed) tubing is typically quite long; however, we maintain a ready stock of precision-drawn 310S base tubes, allowing us to complete the BA treatment, finishing, and shipment process in as little as two weeks.

Conventional 310S stainless steel round tubing often exhibits surface yellowing caused by uneven annealing. Our ASTM A269 TP310S stainless steel tubing undergoes a fully automated, continuous bright annealing process, featuring a stable nickel content of 19.0–22.0% and a chromium content of 24.0–26.0%. It retains exceptional oxidation resistance even during continuous service at temperatures up to 1100°C. The inner surface roughness of our 310S BA tubing reaches Ra ≤ 0.4 µm, effectively preventing carbon buildup or fluid-borne deposits at high temperatures.

310S stainless steel heat exchanger tubing is prone to work hardening. If the annealing process is incomplete, micro-cracks may develop during on-site operations such as 90-degree bending or flaring. We strictly control the annealed hardness of our tubing to below HRB 80. Furthermore, we subject every batch of tubing to rigorous flaring and flattening tests-simulating actual on-site construction conditions to guarantee a 100% crack-free performance.



ASTM A269 TP310S Stainless Steel Seamless Pipe specification

Standard	ASTM A269,ASME SA269
Pipe Type	Bright Annealed Stainless Steel Tubing
Grades	304, 304L, 316, 316L, 321, 310S
Dimensions	Outer Diameter (OD): 1.00 mm to 76.2 mm
Wall Thickness	0.2 mm to 6.0 mm
Length	Up to 12 meters (custom lengths available upon request)
Manufacturing Process	Cold Drawn, Bright Annealed, Seamless
Material Surface Finish	Bright Annealed (BA), Mirror Polished, No. 4 Finish
End Type	Plain End (PE), Beveled End (BE), Threaded End (TE)
Certifications	ISO 9001, EN 10204 3.1 / 3.2, PED, ASME



Chemical Composition of  TP 310 Stainless Steel Tubes

Chemical Composition	310	310S
Carbon	0.25 max	0.08 max
Manganese	2.00 max	2.00 max
Silicon	1.50 max	1.50 max
Phosphorus	0.045 max	0.045 max
Sulphur	0.030 max	0.030 max
Chromium	24.00 - 26.00	24.00 - 26.00
Nickel	19.00 - 22.00	19.00 - 22.00



Mechanical Properties of ASTM A269 TP 310 Stainless Steel Seamless Tubes

Mechanical Properties	310/ 310S
Grade 0.2 % Proof Stress MPa (min)	205
Tensile Strength MPa (min)	520
Elongation % (min)	40
Hardness (HV) (max)	225



Allowable Working Pressure Table for ASTM A269 Tubing

Outside Diameter (OD)	Wall Thickness (WT)	Allowable Working Pressure (PSI)	Allowable Working Pressure (Bar)	Theoretical Burst Pressure (PSI)
1/4" (6.35 mm)	0.035" (0.89 mm)	5,100	351	20,400
1/4" (6.35 mm)	0.049" (1.24 mm)	7,500	517	30,000
3/8" (9.53 mm)	0.035" (0.89 mm)	3,300	227	13,200
3/8" (9.53 mm)	0.049" (1.24 mm)	4,800	331	19,200
1/2" (12.7 mm)	0.035" (0.89 mm)	2,600	179	10,400
1/2" (12.7 mm)	0.049" (1.24 mm)	3,700	255	14,800
1/2" (12.7 mm)	0.065" (1.65 mm)	5,100	351	20,400
3/4" (19.05 mm)	0.049" (1.24 mm)	2,400	165	9,600
3/4" (19.05 mm)	0.065" (1.65 mm)	3,300	227	13,200
1" (25.4 mm)	0.065" (1.65 mm)	2,400	165	9,600
1" (25.4 mm)	0.083" (2.11 mm)	3,100	213	12,400



ASTM A269 TP310S Seamless Bright Annealed (BA) Tubing Price Reference

Product Specification (OD x WT)	Metric Size (mm)	Standard / Grade	Processing Method	Estimated FOB Price (USD/kg)	MOQ
1/4" x 0.035"	6.35 x 0.89 mm	ASTM A269 TP310S	Cold Drawn + BA	$48.50 - $55.00	50 kg
3/8" x 0.049"	9.53 x 1.24 mm	ASTM A269 TP310S	Cold Drawn + BA	$45.00 - $52.00	50 kg
1/2" x 0.049"	12.7 x 1.24 mm	ASTM A269 TP310S	Cold Drawn + BA	$42.50 - $49.50	100 kg
3/4" x 0.065"	19.05 x 1.65 mm	ASTM A269 TP310S	Cold Drawn + BA	$39.00 - $46.00	100 kg



If you have project-specific requirements for 310S stainless steel tubing, we invite you to place an order. GNEE maintains a substantial inventory of popular products for you to choose from. Available in both seamless and welded forms, these tubes can be customized to your specifications; for detailed chemical compositions or free samples, please contact our factory immediately.



Contact now



All our products undergo individual inspection according to established standards before packaging. Only products that pass inspection are packaged according to export standards.

Testing Content:

Size checking (O.D. - Thickness - Length): 100% checking

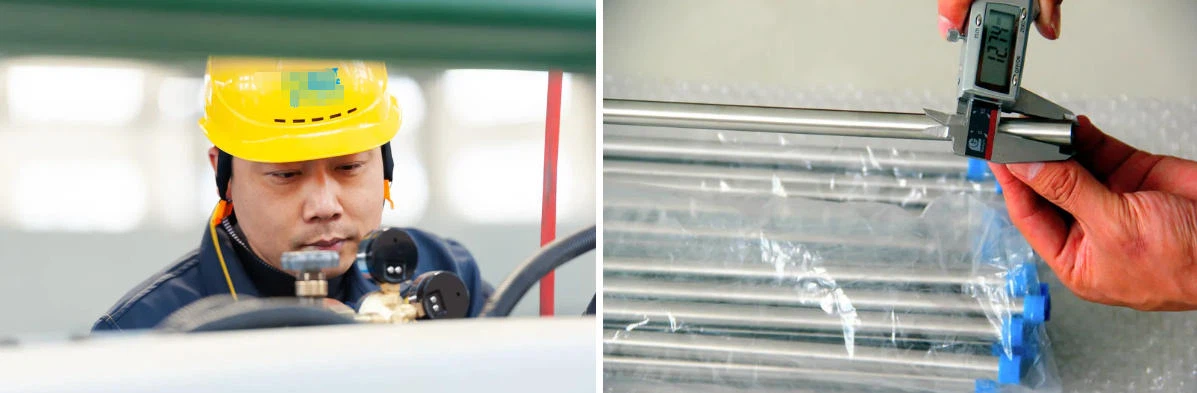

Non-destructive Testing:
Hydrostatic test: 100%
Eddy current test: 100%
Ultrasonic test: As per client's request
Destructive Testing:
Mechanical Properties Test:
1. Bending test
2. Flattening test
3. Flaring test

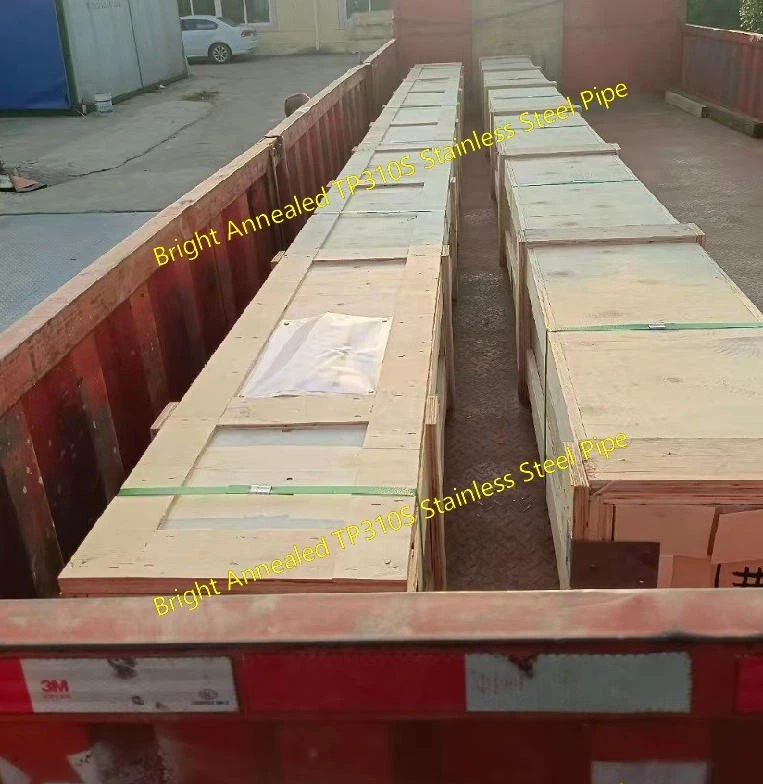

Shipping and Packaging:

All our products can be shipped via various methods, including Full Container Load (FCL), Less than Container Load (LCL), and air freight. Waterproof paper and steel strapping are used for packaging, meeting standard export sea freight packaging requirements and suitable for various modes of transport, or customized according to customer requirements.
