ASTM A276 SS 420 Stainless Steel Round Bar
Leave a message
what is ASTM A276?
ASTM A276 is a standard specification by ASTM International that defines the requirements for stainless steel bars and shapes, including those that are hot-finished or cold-finished, and in various forms like rounds, squares, hexagons, and other shapes.
ASTM A276 Gr 420 Round Bar is a high-strength, martensitic stainless steel bar that offers good corrosion resistance and hardness, suitable for general engineering applications and components requiring these properties. It is a versatile material with a high chromium content (at least 12%) and can be heat-treated to achieve maximum hardness and strength, but its corrosion resistance is somewhat limited compared to austenitic grades. Common applications include knife blades, surgical instruments, and hand tools.
420 Stainless Steel Round Bar Specification
| Standard | 410 / 1.4006 420 / 1.4021 430 /1.4016 431 / 1.4057 440 A /1.4109 440 B / 1.4112 440 C /1.4125 446 / 1.4762 |
| Designation | ASTM, ASME, AISI A 276 , SA 276, A 479, SA 479 |
| Range | 3 MM TO 350 MM DIA |
| Finish | Bright, Polish & Black |

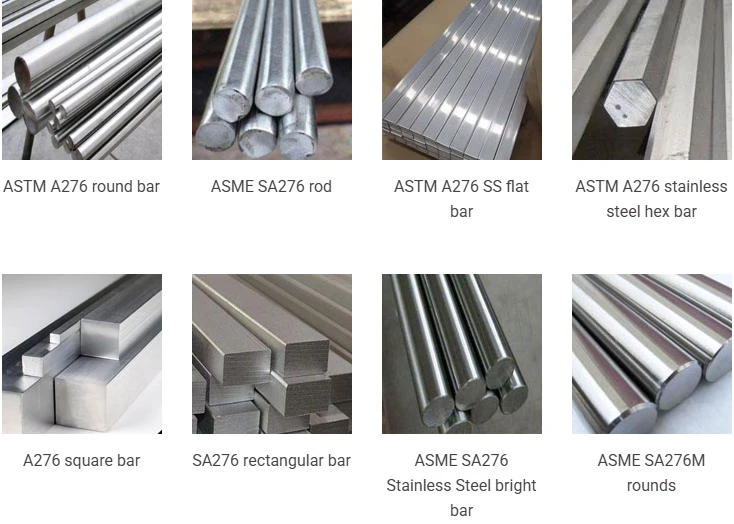

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Application | Cutlery, Steam and gas turbine blades, Kitchen utensils, Bolts, nuts, screws, Pump and valve parts and shafts, Mine ladder rugs, Dental and surgical instruments, Nozzles, Hardened steel balls and seats for oil well pumps. |
Chemical Properties Of 420 Stainless Steel Round Bar:
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 420 | 0.15 max |
1.00 max |
1.00 max |
0.04 max |
0.03 max |
min: 12.0 max: 14.0 |
- |
Mechanical Properties of SS 420 :
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) |
Elongation (% in 50mm) |
Hardness Brinell (HB) |
|---|---|---|---|---|
| Annealed * | 655 | 345 | 25 | 241 max |
| 399°F (204°C) | 1600 | 1360 | 12 | 444 |
| 600°F (316°C) | 1580 | 1365 | 14 | 444 |
| 800°F (427°C) | 1620 | 1420 | 10 | 461 |
| 1000°F (538°C) | 1305 | 1095 | 15 | 375 |
| 1099°F (593°C) | 1035 | 810 | 18 | 302 |
| 1202°F (650°C) | 895 | 680 | 20 | 262 |
| * Annealed tensile properties are typical for Condition A of ASTM A276; annealed hardness is the specified maximum. | ||||
ASME SA276 Round Bar finishes
| SRE | BD |
| P | CD |
| PR | ST |
| HRAP | CF |
| HF | CG |
| RT | P&T |
ASTM A276 TP420 stainless steel bar is available in different tempers. This bar is available in A, B, H, and T tempers. ASTM A276 TP420 stainless steel round bar in temper A is annealed, temper B is severely cold worked, temper H is quenched and tempered, and temper T is high temperature quenched and tempered. Temper S is strain hardened and lightly cold worked.
GNEE is a manufacturer and supplier of A276 grade steel. Contact us for a complete product and price list.
Packaging:
We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--
• Boxes and Crates
• Shrink-wrapped
• Carton boxes
• Wooden pallets
• Wooden boxes
