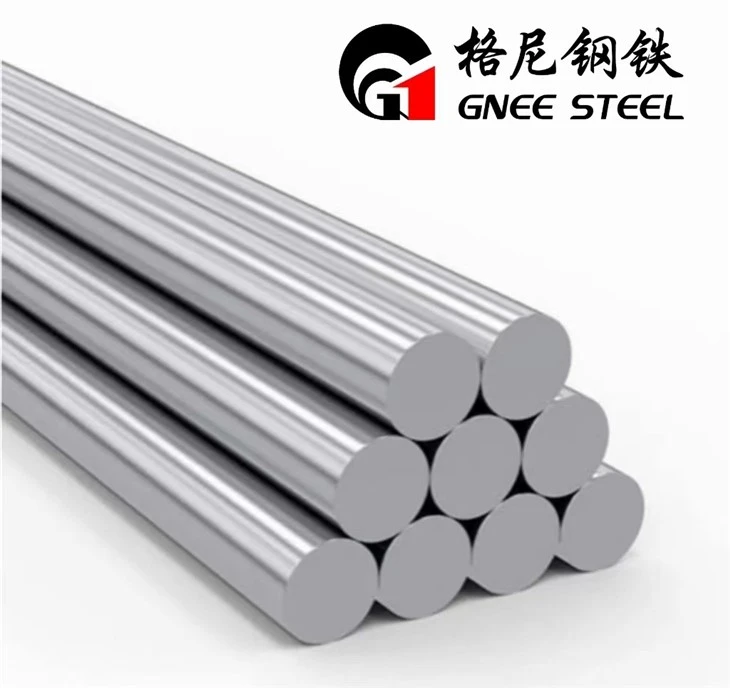

Inconel 617 Alloy Round Bar
Designated as UNS N06617 or W.Nr. 2.4663a, Inconel 617, also known as “Alloy 617”, is a nickel-chromium-cobalt-molybdenum alloy with an exceptional combination of metallurgical stability, strength, and oxidation resistance at high temperatures. Its resistance to oxidation is enhanced by an aluminum addition. Inconel Alloy 617 also resists a wide range of corrosive aqueous environments. It can be used in gas turbines for combustion cans, ducting, and transition liners; for petrochemical processing piping; for heat-treatment equipment; and in nitric acid production. Inconel 617 also offers attractive properties for piping components of power plants, both fossil-fueled or nuclear.
Send E-mail:info@gneestainless.com
Tel:+8615824687445
Description
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of inconel 617 alloy round bar in China. With abundant experience, we warmly welcome you to wholesale customized inconel 617 alloy round bar from our factory. For price consultation, contact us.
1. Chemical Composition Requirements
| Element | Content, % |
|---|---|
| Nickel | ≥44.5 |
| Chromium | 20.0-24.0 |
| Cobalt | 10.0-15.0 |
| Molybdenum | 8.0-10.0 |
| Aluminum | 0.8-1.5 |
| Carbon | 0.05-0.15 |
| Iron | ≤3.0 |
| Manganese | ≤1.0 |
| Silicon | ≤1.0 |
| Sulfur | ≤0.015 |
| Titanium | ≤0.6 |
| Copper | ≤0.5 |
| Boron | ≤0.006 |
2. Physical Properties
| Density | Melting Range | Specific Heat at 78°F(26°C) | Electrical Resistivity at 78°F(26°C) | ||||
|---|---|---|---|---|---|---|---|
| lb/in3 | Mg/m3 | °F | °C | Btu/lb-°F | J/kg-°C | ohm-circ mil/ft | μΩ-m |
| 0.302 | 8.36 | 2430-2510 | 1332-1380 | 0.100 | 419 | 736 | 1.22 |
3. Product Forms and Related Standards for Inconel 617
| Products Form | Standard |
|---|---|
| Rod, bar and wire | ASTM B166 |
| Plate, sheet and strip | ASTM B168, B906 |
| Seamless pipe and tube | ASTM B167, B829 |
| Billet and bar for reforging | ASTM B472 |
| Forging | ASTM B564 |
FAQ
Q1: How can we get the sample?
A1: Free samples are available for your checking and testing.But you need to pay for the frieght cost.
Q2: Can you provide Mill Test Certificate?
A2: Yes! The Mill Test Certificate will be issued with the product.
Q3:Packing details?
A3:Packaged 25 Tons per 20 GP wooden case container.
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)
