When purchasing SS 316 stainless steel products, understanding their thermal expansion characteristics is crucial for the following applications, in precision engineering – ensuring components maintain tolerances during heating or cooling cycles, in piping design – preventing thermal stress in high-temperature fluid transfer systems. In food and beverage applications – maintaining seal integrity during sterilization processes. In marine and offshore equipment – accommodating dimensional changes caused by temperature variations.
Understanding this property is essential when designing systems where SS 316 pipes, sheets, or components will operate in high-temperature or fluctuating thermal environments.
What is the Thermal Expansion Coefficient of 316 sS?
The thermal expansion coefficient (CTE) measures how much a material expands per degree of temperature increase. For stainless steels like SS 316, it is typically expressed in µm/m·°C (micrometers per meter per degree Celsius). A higher CTE means the material expands more when heated, which must be accounted for in engineering designs to prevent misalignment, leaks, or mechanical stress.
Thermal Expansion Coefficient of SS 316
| Thermal Properties | |||
| Note: These values are for annealed SS 316. Actual expansion may vary slightly depending on manufacturing method, heat treatment, and product form (plate, pipe, bar, etc.). | |||
| CTE, linear 20°C | 16 µm/m-°C | 8.89 µin/in-°F | 0 - 100ºC |
| CTE, linear 250°C | 16.2 µm/m-°C | 9 µin/in-°F | at 0-315°C (32-600°F) |
| CTE, linear 500°C | 17.5 µm/m-°C | 9.72 µin/in-°F | 0 - 540ºC |
| Specific Heat Capacity | 0.5 J/g-°C | 0.12 BTU/lb-°F | from 0-100°C (32-212°F) |
| Thermal Conductivity at Elevated Temperature | 16.3 W/m-K | 113 BTU-in/hr-ft²-°F | 100ºC |
| Melting Point | 1370 - 1400 °C | 2500 - 2550 °F | |
| Solidus | 1370 °C | 2500 °F | |
| Liquidus | 1400 °C | 2550 °F | |
| Maximum Service Temperature, Air | 870 °C | 1600 °F | Intermittent Service |
| Maximum Service Temperature, Air | 925 °C | 1700 °F | Continuous Service |
Example Calculation of Thermal Expansion

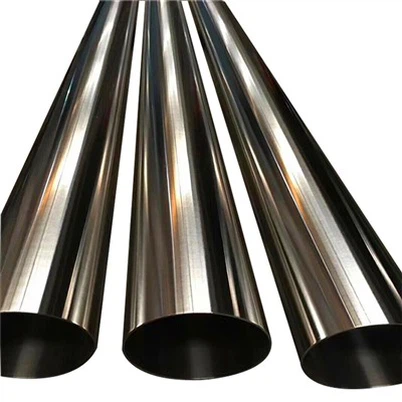

Material: SS 316 pipe
Length: 10 meters
Operating temperature rise: 100 °C
CTE (20–200 °C): 16.5 µm/m·°C
Expansion = Length × CTE × Temperature Change
= 10 × (16.5 × 10⁻⁶) × 100
= 16.5 mm expansion
Interpretation: The pipe will grow by 16.5 mm when the temperature increases by 100 °C, so the design must allow for expansion joints or flexible connections.
If your project involves high temperature or fluctuating temperature conditions, you must ensure your supplier provides material test certificates (MTC) and dimensional tolerances suitable for your thermal expansion requirements.
