What is SUH409L 2D stainless steel coil?

What is SUH409L 2D stainless steel coil?

SUH409L Stainless Steel Coil is an ultra-low carbon ferritic heat-resistant stainless steel coil manufactured in accordance with the Japanese JIS standard. Its core composition features low carbon content (≤0.03%) and high chromium content (10.5%–11.7%), with the addition of titanium to enhance high-temperature stability, improve weldability, and prevent intergranular corrosion.

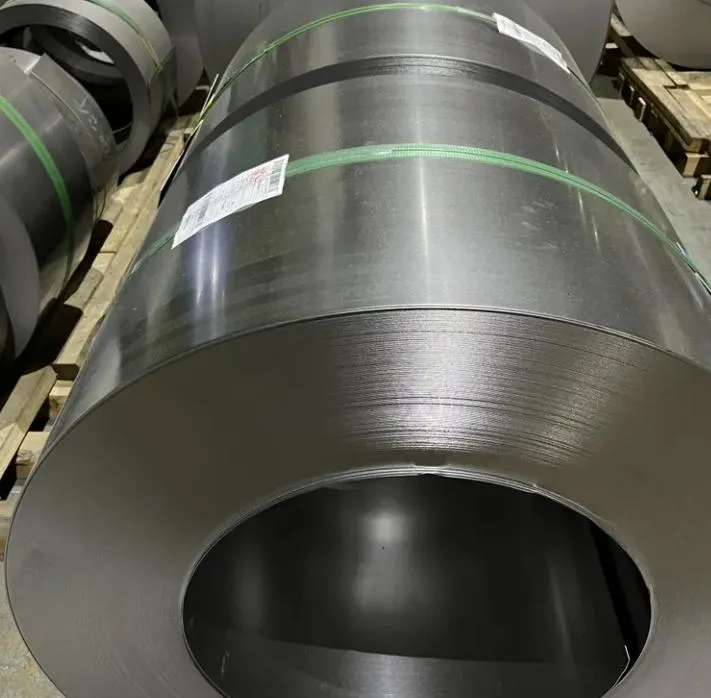

SUH409L 2D Stainless Steel Coil refers to a cold-rolled surface finish obtained through annealing and temper rolling. It features a uniform matte appearance and smooth texture, making it an ideal base material for further surface processing such as brushing or polishing.

The material offers excellent high-temperature oxidation resistance, with a maximum intermittent service temperature of 815°C and a maximum continuous service temperature of 675°C. Its corrosion-resistant operating temperature range extends from -20°C to 650°C.



The SUH409L 2D stainless steel coils we supply provide excellent weldability, good formability, and outstanding flexibility. As an environmentally friendly and recyclable material, it achieves a recycling rate of up to 98%. The coils are supplied in continuous rolled form, typically with thicknesses ranging from 0.3 mm to 3.0 mm and widths up to 1500 mm, making them suitable for deep drawing, bending, and precision cutting into components.

SUH409L 2D Stainless Steel Coil Specification

Thickness	0.05mm – 8.0mm, etc.
Width	600mm – 2000mm, the narrowed products pls check in strip products
Max coil weight	25MT, etc.
Coil ID	508mm,610mm, etc.
Finish	2B, 2D, BA, No.4, HL, Mirror, 8k, Emboss, Etch, etc.
Packaging	Wooden pallets, waterproof paper
Service	Samples and MTC can be provided as per your requirements.
Origin	China



SUH409L Stainless Steel Chemical Composition (Mass Weight %)

Standard Reference: JIS G4312 / JIS G4305

Grade	C	Si	Mn	P	S	Cr	Ti
SUH409L	≤ 0.030	≤ 1.00	≤ 1.00	≤ 0.040	≤ 0.030	10.50 – 11.70	6×(C+N) to 0.75



SUH409L Stainless Steel Mechanical Properties (At Room Temperature)

Property	Value (Typical)	Test Method
Yield Strength (0.2% Offset)	≥ 175 MPa	ASTM E8 / JIS Z2241
Tensile Strength	≥ 360 MPa	ASTM E8 / JIS Z2241
Elongation (A50mm)	≥ 25%	ASTM E8 / JIS Z2241
Hardness (Rockwell B)	≤ 75 HRB	ASTM E18
Hardness (Vickers)	≤ 175 HV	JIS Z2244



SUH409L Stainless Steel Physical Properties

Property	Value
Density	7.75 g/cm³
Specific Heat	460 J/(kg·K)
Thermal Conductivity (100°C)	25.8 W/(m·K)
Modulus of Elasticity	200 GPa
Coefficient of Thermal Expansion	11.0 (0-100°C) 10⁻⁶/K

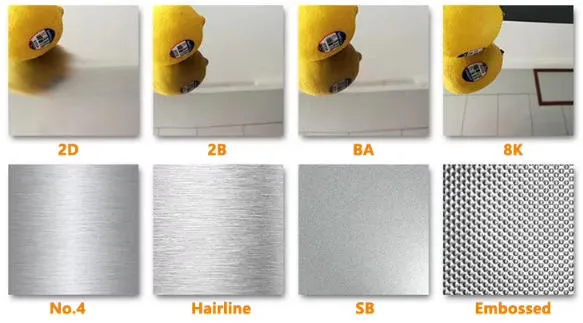

SUH409L Cold Rolled Stainless Steel Coil Surface

Surface type	Surface description	Roughness
2B	Uniform, smooth and straight surface	Ra0.2-2.0μm
2D	Uniform, matte surface	Ra0.2-2.0μm
HL	The surface rolled by the wire drawing roller has longitudinal silk stripes.	Ra0.2-2.0μm
NL	Non-directional texture, dot-shaped, Non Linear Surface	Ra0.2-2.0μm
SB	Sandblast Surface	Ra0.2-2.0





SUH409L stianless steel Equivalent Grades

JIS (Japan)	ASTM (USA)	EN (Europe)	DIN (Germany)
SUH409L	409 / S40900	1.4512	X2CrTi12



SUH409L 2D vs. 2B Stainless Steel Coils

SUH409L (a highly weldable, low-carbon ferritic stainless steel) is widely used in automotive exhaust systems. The main difference between 2D and 2B surface finishes for these coils is appearance and mechanical properties: 2D offers a dull, matte surface ideal for deep drawing, while 2B is smoother, slightly reflective, and better suited for visual applications or subsequent polishing.



What is the difference between SUH409L stainless steel and 304 ?

SUH409L and 304 represent two vastly different stainless steel alloys. SUH409L is a ferritic, heat-resistant alloy primarily used for automotive exhausts, while 304 is a premium, austenitic, corrosion-resistant alloy used in food service and architecture. 304 is far more durable and rust-resistant, but SUH409L is more economical and handles extreme heat better.

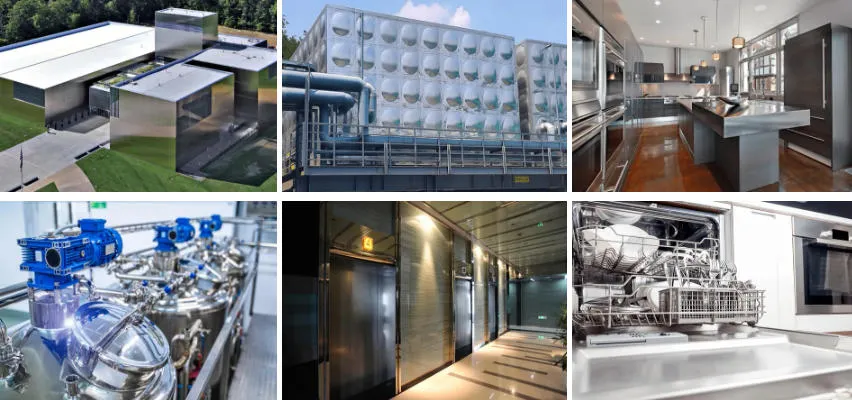

Applications of SUH409L Cold Rolled Stainless Steel Coil

SUH409L stainless steel is the mainstream material for automotive exhaust systems, including exhaust pipes, catalytic converter shells, and mufflers, with an average consumption of 35–65 kg per vehicle. It is also widely used in:

Heat treatment equipment components

Premium motorcycle exhaust systems

Architectural decoration

Kitchenware

Medical instruments and equipment

Other heat-resistant structural applications



SUH409L 2D stainless steel coil price per kg

FOB (China-origin): Typically US$1,000 to US$2,000 per metric ton, equivalent to US$1.00 to US$2.00 per kilogram (usually subject to a minimum order quantity of 1 to 5 metric tons).
Retail / Small-batch: Prices for small quantities or products with special specifications generally range from US$2.15 to US$3.48 per kilogram, depending on exact dimensions and strip specifications.

Click to get the SUH409L FOB price

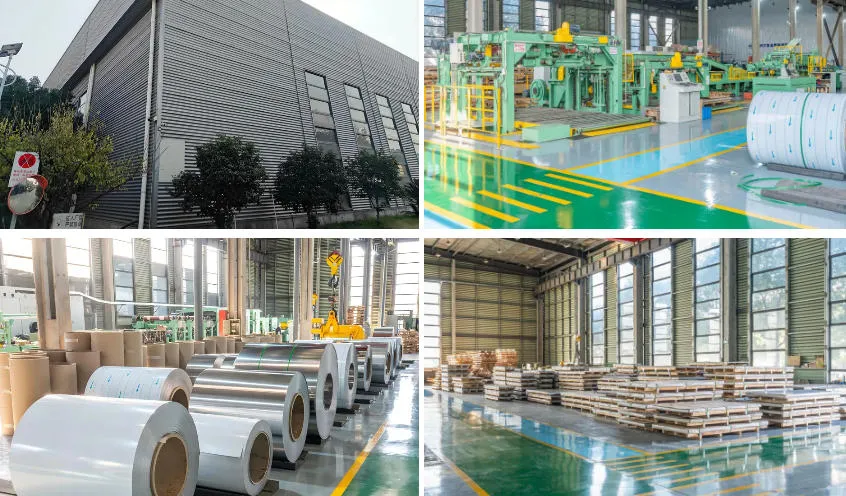

SUH409L 2D Finish Coil Manufacturer China

Massive Ready Stock: We maintain a standing inventory of over 5,000 tons of SUH409L 2D coils in standard thicknesses (0.5mm to 3.0mm) to meet urgent project needs.
Stock items: Shipped within 3-5 days.
Custom production: Delivered within 15-25 days via our priority production scheduling.
Flexible MOQ: We support small-batch trial orders for R&D and prototyping before mass production.

The following items are available in stock. Please see the details below.

Steel Grade	Actual Thickness (mm)	Nominal Width (mm)	Net Weight (Ton)	Surface Grade	Nominal Thickness (mm)	Coil No.	Coil Condition	Actual Width (mm)
SUH409L/2D	2.916	1250	7.516	M1	3.0	26117690C	Full Coil	1255
SUH409L/2D	2.916	1250	6.771	M1	3.0	26117690E	Full Coil	1255
SUH409L/2D	1.427	1250	7.397	M1	1.5	26203140E	Full Coil	1258
SUH409L/2D	1.427	1250	7.517	M1	1.5	26203140D	Full Coil	1258
SUH409L/2D	1.427	1250	7.661	M1	1.5	26203140C	Full Coil	1258
SUH409L/2D	1.431	1250	7.567	M1	1.5	26400980D	Full Coil	1258
SUH409L/2D	1.431	1250	7.519	M1	1.5	26400980C	Full Coil	1258
SUH409L/2D	1.431	1250	7.316	M1	1.5	26400980E	Full Coil	1258
SUH409L/2D	1.112	1250	7.641	M1	1.2	26400910E	Full Coil	1261
SUH409L/2D	1.112	1250	7.734	M1	1.2	26400910C	Full Coil	1260
SUH409L/2D	1.112	1250	7.716	M1	1.2	26400910D	Full Coil	1260



We utilize 20-high Sendzimir cold rolling mills and continuous annealing and pickling lines to ensure consistent 2D surface finishes and stable grain structures-ideal for deep drawing and tube bending-as well as tension leveling machines to eliminate internal stresses and guarantee absolute flatness.

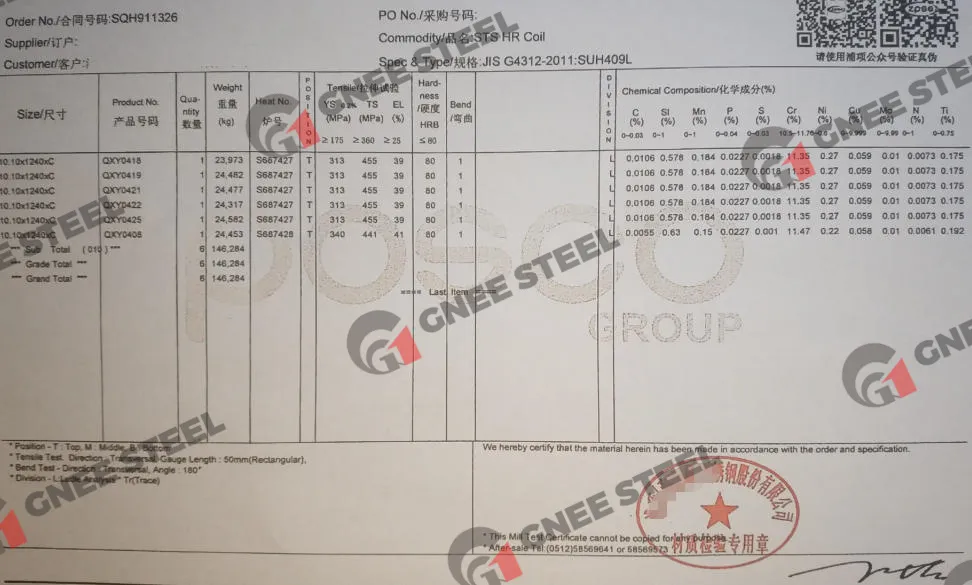

Every coil is issued with a Mill Test Certificate (MTC) according to EN 10204 3.1, covering chemical analysis and mechanical testing (Yield, Tensile, Elongation, Hardness).Third-Party Inspection: We welcome and support inspections by SGS, BV, or TUV before shipment.

Product Packaging

We use standard export-grade, seaworthy packaging to ensure the products remain free from moisture, rust, and deformation during long-distance transport.

Feature	Specification Details
Inner Core	Steel core or paper core (508mm/610mm ID) to prevent coil collapse.
Protection Layer	Wrapped with waterproof paper and anti-rust plastic film (VCI) to prevent moisture.
Edge Protection	Metal inner and outer edge protectors to prevent mechanical damage during lifting.
External Binding	Secured with at least 4-6 high-strength steel straps (radial and circumferential).
Palletization	Placed on fumigated wooden pallets or iron skids suitable for sea freight.
Labeling	Waterproof labels stating Heat No., Grade, Size, Weight, and Origin.
