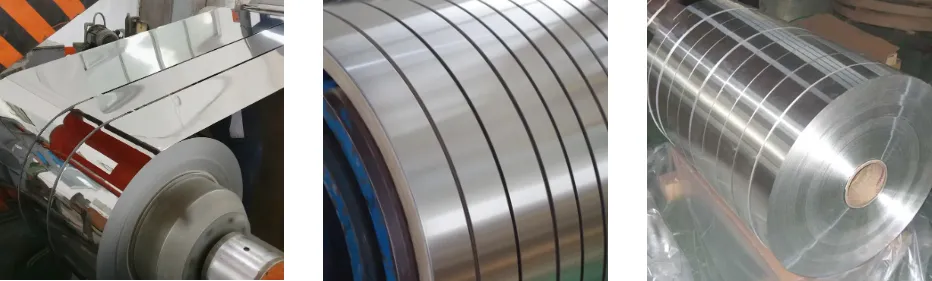

SUH409L 2b Finished Stainless Steel Coil Strip

what is SUH409L 2b Finished Stainless Steel Coil Strip?

SUH409L 2B Stainless Steel Coil/Strip is an ultra-low carbon, titanium-stabilized ferritic stainless steel produced in accordance with JIS G4312 SUH409L, UNS S40903, and EN 1.4512 standards. Featuring a smooth and semi-bright 2B surface finish, it is commonly supplied in coil or slit strip form for a wide range of industrial manufacturing applications.





SUH409L 2B vs. 2D: Key Differences

SUH409L 2B Cold Rolled Stainless Steel Strip is the most common mill-finished surface condition. The production process includes cold rolling, annealing, pickling, and a final skin-pass treatment using polished rolls. This results in a smooth, uniform, grayish-white surface with a slight metallic luster, offering better reflectivity than the matte 2D finish.The surface roughness (Ra) typically ranges from 0.2 to 0.5 μm. Compared with rougher finishes, the 2B surface is easier to clean and provides improved resistance to surface contamination, making it suitable for applications requiring both functionality and a neat appearance.



The SUH 409L 2B stainless steel coils we supply are generally produced through the cold rolling process and are available in standard specifications with thicknesses ranging from 0.08 mm to 8.0 mm and widths from 4.6 mm to 1500 mm. Edge trimming and slit-edge processing can be customized according to customer requirements. Products are commonly supplied in annealed (soft) or half-hard temper conditions.

Main Applications

Automotive exhaust systems, including manifolds, catalytic converter shells, and mufflers

Agricultural and industrial exhaust equipment

Heat exchangers

Household appliance components

Other heat-resistant and corrosion-resistant industrial parts



SUH409L 2B Stainless Steel Coil Specifications

Thickness	0.08mm~8.0mm
Width	4.6mm~1500mm or as you require
Length	2000mm-6000mm or as customer request
Standard	ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Material	409,409L,410, 430, etc
Surface	2B, BA, 8K, No. 4 No.1
Packaging	Seaworthy Export Standard or as customer's requests
Technique	cold rolled
Delivery time	7-20 days, or according to your size and quantity
Supply ability	500 tons/ month
Payment terms	L/C, T/T, Western Union
Note	We can produce other standard as the customers' requirement



SS 409 409l Chemical Composition

Grade	C	Si	Mn	S	P	Cr	Ni	Ti
ss 409	≤0.08	≤1.0	≤1.0	≤0.03	≤0.045	10.5～11.7	0.5 Max	6xC – 0.75
ss 409l	≤0.03	≤1.0	≤1.0	≤0.03	≤0.045	10.5～11.7	0.5 Max	6xC – 0.75



mechanical property of 409&409L stainless steel coil

Mechanical Properties	409 Stainless Steel	409L Stainless Steel
Tensile Strength (MPa)	380-560	380-580
Yield Strength (0.2% offset) (MPa)	≥ 205	≥ 175
Elongation (%)	≥ 22	≥ 25
Hardness (Brinell, HB)	≤ 207	≤ 170



Thickness Tolerance  for SUH409L 2B Stainless Steel Coil & Strip

Nominal Thickness (mm)	Width < 600 (Precision Strip)	Width 600 ≤ W < 1000	Width 1000 ≤ W < 1250	Width 1250 ≤ W < 1500
0.30 – 0.50	± 0.03	± 0.04	± 0.05	± 0.06
0.51 – 0.80	± 0.04	± 0.05	± 0.06	± 0.07
0.81 – 1.00	± 0.05	± 0.06	± 0.07	± 0.08
1.01 – 1.20	± 0.06	± 0.07	± 0.08	± 0.09
1.21 – 1.50	± 0.07	± 0.08	± 0.09	± 0.10
1.51 – 2.00	± 0.08	± 0.10	± 0.11	± 0.12
2.01 – 2.50	± 0.10	± 0.12	± 0.13	± 0.14
2.51 – 3.00	± 0.12	± 0.14	± 0.15	± 0.16



What is the maximum service temperature for SUH409L?

SUH409L provides reliable scaling (oxidation) resistance up to 650°C (1200°F) for continuous service and up to 815°C (1500°F) for intermittent service. This makes it ideal for automotive exhaust systems.

Can SUH409L be deep-drawn or bent?

Absolutely. SUH409L has excellent ductility, similar to carbon steel, allowing it to undergo complex bending, tube expanding, and deep drawing without cracking.

When ordering SUH409L 2B strips for tube making, please specify your requirements for edge quality (slit edge vs. mill edge) and camber tolerances to ensure seamless operation on your high-speed welding lines.

Click to customize SUH409L stainless steel coils



HS Codes for SUH409L Stainless Steel

Depending on the product's width and thickness, Customs codes are generally classified into the following categories (the first six digits are globally standardized):

Product Category	HS Code (Ref)	Description (English)
Coil (W ≥ 600mm)	7219.34.00	Cold-rolled stainless steel, 0.5mm ≤ Thickness ≤ 1.0mm
Coil (W ≥ 600mm)	7219.33.00	Cold-rolled stainless steel, 1.0mm < Thickness < 3.0mm
Strip (W < 600mm)	7220.20.00	Cold-rolled stainless steel, Width less than 600mm

Note: It is recommended to consult your customs broker regarding the specific export tax rebate rates and sub-categories for China; commonly used codes are 7219340000 or 7220204000.



JIS G4312 SUH409L Stainless Steel Coil Price per Ton (Reference)

Price Basis: FOB Tianjin/Shanghai Port, China
Currency: USD per Metric Ton (MT)
Surface: 2B Finish
Standard: JIS G4312 / SUH409L

Thickness (mm)	Width (mm)	FOB Price (USD/MT)	Remarks
0.5mm – 0.8mm	1000 - 1250	$1,350 - $1,450	Standard Export Package
1.0mm – 1.5mm	1000 - 1250	$1,300 - $1,380	Prime Quality
1.5mm – 3.0mm	1000 - 1250	$1,280 - $1,350	Hot Sale for Mufflers
Slit Strip (<600mm)	Custom Width	+$50 - $80	Surcharge for slitting



Our Advantages:

Stable Inventory: Over 500 tons of stock available for immediate shipment.
Precision Processing: Slitting width tolerance controlled within ±0.05mm.
Lead Time: 7–10 days for in-stock items; 20–30 days for new production.

Quality Standards: Material Test Certificates (MTC) compliant with EN 10204 3.1 provided.
A technical data sheet and packaging photos are attached for your reference.

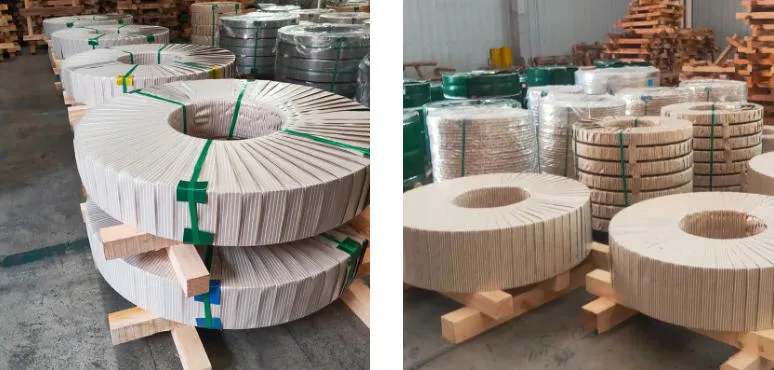

High-quality sea freight packaging

We usually use standard export packaging, we use wooden frames to fix its position to prevent any damage during transportation and hang multiple dryers in the container to keep the container dry. If customers have other packaging requirements, we can also meet them.
