What is 316 Stainless Steel Diamond Plate?
316 stainless steel diamond plate, also known as 316 tread plate or 316 anti-slip plate, is made from AISI 316 austenitic stainless steel. It is a durable, corrosion-resistant metal sheet with raised diamond patterns that provide a non-slip surface, widely used in flooring, walkways, and construction applications, especially where high durability and safety are required.
If you are looking for in-stock 316 stainless steel diamond plates, you are likely seeking a durable, corrosion-resistant, and anti-slip metal surface suitable for industrial or marine applications.
GNEE can supply high-quality 316L/AISI 316 stainless steel diamond plates with thicknesses ranging from 0.8mm to 14mm, customizable widths, and cut-to-length options. These plates are available in 2B, No.4, or bright annealed (BA) finishes, making them ideal for applications such as kitchen flooring, anti-slip walkways, ship decks, and chemical equipment platforms.
All GNEE 316 stainless steel diamond plates comply with ASTM A240 / EN 1.4401 standards and are ISO and SGS certified, with complete chemical composition and mechanical property test reports provided to ensure material stability and long-lasting performance.
Our Products
If you want to know more details and prices of the products, please contact us in time! Email: info@gneestainless.com

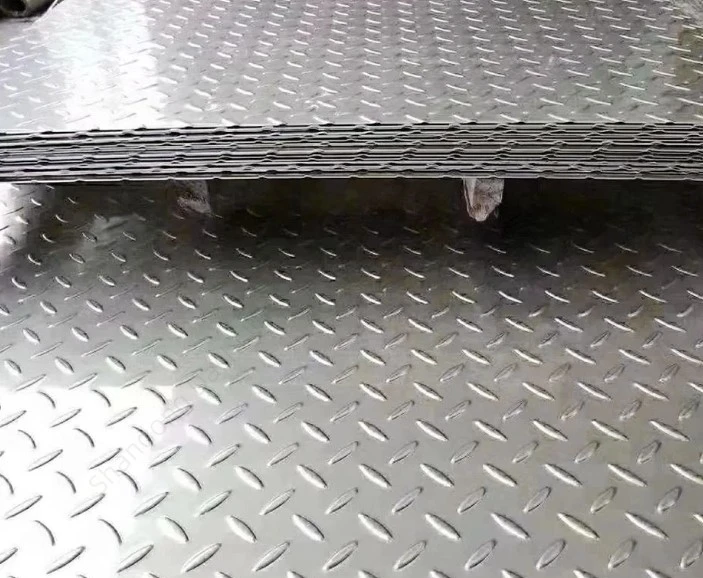

316 Stainless Steel Marine Patterned Plate
ASTM 316 Stainless Steel Diamond Plate Specification
| Parameter | Specification |
|---|---|
| Material Grade | ASTM 316 / EN 1.4401 / UNS S31600 |
| Standard | ASTM A240, A480, EN 10088, JIS G4304 |
| Thickness Range | 2.0 – 8.0 mm |
| Width Range | 1000 – 2000 mm |
| Length Range | 2000 – 6000 mm (customizable) |
| Surface Finish | Diamond pattern (tread/chequered), Mill finish, No.4, BA |
| Pattern Type | 5-bar, Tear-drop, Checker, Custom embossed |
| Density | 8.0 g/cm³ |
| Tensile Strength | 515–690 MPa |
| Yield Strength (0.2% offset) | ≥205 MPa |
| Elongation | ≥40% |
ASTM 316 Stainless Steel Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.08 |
| Chromium (Cr) | 16.0 – 18.0 |
| Nickel (Ni) | 10.0 – 14.0 |
| Molybdenum (Mo) | 2.0 – 3.0 |
| Manganese (Mn) | ≤ 2.0 |
| Silicon (Si) | ≤ 1.0 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.03 |
| Iron (Fe) | Balance |
316 Stainless Steel Diamond Plate Dimensions Table
| Thickness (mm) | Standard Width (mm) | Standard Length (mm) | Pattern Type | Approx. Weight (kg/m²) |
|---|---|---|---|---|
| 2 | 1000 | 2000 / 2500 | 5-bar | 15.7 |
| 3 | 1000 / 1250 | 2000 / 3000 | Tear-drop | 23.6 |
| 4 | 1250 | 2500 / 3000 | Checker | 31.4 |
| 5 | 1250 / 1500 | 2500 / 6000 | 5-bar | 39.3 |
| 6 | 1500 | 3000 / 6000 | Diamond | 47.1 |
| 8 | 1500 / 2000 | 3000 / 6000 | Custom | 62.8 |
Applications
Chemical and food processing plants
Marine decks and ship platforms
Walkways and stair treads in industrial facilities
Refrigeration and offshore equipment
Decorative architecture and vehicle flooring
ASTM 316 Stainless Steel Diamond Plate Price
The price of ASTM 316 stainless steel diamond plate typically ranges between US$5.5 – US$8.0 per kg, depending on thickness, width, pattern type, and order quantity. For example:
3 mm thick, 1000 mm × 2000 mm plate: ~US$6.2/kg
5 mm thick, 1250 mm × 2500 mm plate: ~US$7.1/kg
Custom cut plates or embossed patterns may be slightly higher due to additional processing.
Note: Final CIF/FOB prices vary depending on destination, surface finish (No.4, BA, or mill finish), and market fluctuations.
1. Formula for calculating the weight of 316 stainless steel checker plate
Where:
Length = length of the sheet in meters (m)
Width = width of the sheet in meters (m)
Thickness = thickness of the plate in millimeters (mm)
7.85 = density of stainless steel in kg per m² per mm thickness
Note: The embossed diamond pattern slightly reduces the flat material volume, but this formula gives a good approximation. For exact weight, some manufacturers provide pattern-specific correction factors.
2. Example Calculation
Suppose you have a 316 stainless steel diamond plate of 2 m × 1 m × 5 mm:
Multiply Length × Width × Thickness:
Multiply by 7.85 to convert to kg:
So, the total weight is approximately 78.5 kg.
HS Code for AISI 316 Stainless Steel Diamond Plate
| Product Type | HS Code | Description |
|---|---|---|
| Stainless Steel Plate, Hot Rolled | 7219.32 | Flat-rolled products of stainless steel, width ≥600mm, hot-rolled |
| Stainless Steel Plate, Cold Rolled | 7219.33 | Flat-rolled products of stainless steel, width ≥600mm, cold-rolled |
| Checkered or Patterned Stainless Steel Plate | 7220.20 | Flat-rolled stainless steel, patterned or textured surface |
Why Choose Gnee?
Our 316 stainless steel checkered plate is processed using advanced production equipment to ensure the precision and consistency of each plate. Our factory utilizes efficient tools such as laser cutting machines, CNC punching machines, and polishing equipment, capable of processing a wide range of stainless steel plate thicknesses from 0.3mm to 8mm, ensuring that our products meet international standards such as ASTM A240. Before shipment, each batch undergoes rigorous quality inspections, including surface finish, thickness tolerance, and dimensional accuracy, to ensure that the product meets customer requirements.
For packaging and shipping, all stainless steel plates are moisture-proofed and securely packaged in wooden crates, pallets, or bubble wrap. Transport is done in standard containers or dedicated trucks to ensure the integrity and safety of the goods during transit. We offer global shipping, with a typical lead time of 7-15 days from production to delivery, ensuring on-time delivery to our customers.
