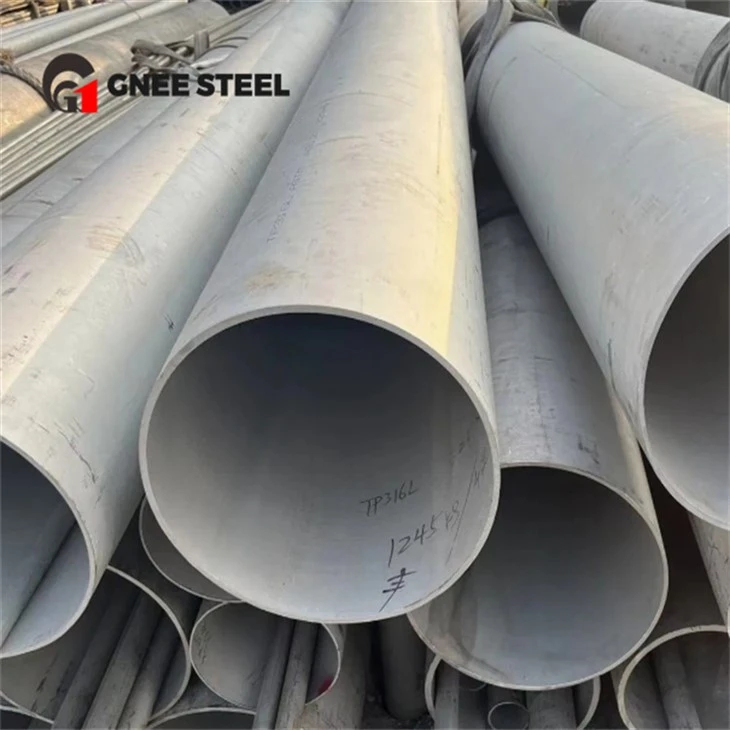

ASTM A312 TP316L Large Diameter Stainless Steel Pipe
Name：ASTM A312 TP316L Large Diameter Stainless Steel Pipe
Certification：ISO, RoHS, IBR, AISI, ASTM, GB, EN, DIN, JIS
Shape：round
Technique：Cold Rolled/Hot Rolled
Surface Treatment：Sanded /Mirror/Hairline Brushed
Thickness：0.3-30mm
out Diameter：8-219mm
Length：5.8/6m or Custom
Stock：in Stock
Sample：Available
Transport Package：Standard Sea-Worthy Packing
Send E-mail:info@gneestainless.com
Tel:+8615824687445
Description
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional manufacturers and suppliers of astm a312 tp316l large diameter stainless steel pipe in China. With abundant experience, we warmly welcome you to wholesale customized astm a312 tp316l large diameter stainless steel pipe from our factory. For price consultation, contact us.
Does your project involve sour service conditions in compliance with NACE MR0175? Do you require additional ultrasonic thickness inspection? GNEE is fully equipped with advanced facilities and capabilities to support high-demand projects in the oil & gas, chemical, and pharmaceutical industries.
GNEE has extensive experience exporting ASTM A312 TP316L large diameter stainless steel pipes to more than 50 countries, with annual shipments exceeding 2,000 tons. We are certified with ISO and PED, and fully support third-party inspections from SGS, BV, TÜV, and Moody, along with dedicated in-house inspection facilities to ensure complete transparency and compliance throughout the process.
We supply large diameter TP316L stainless steel pipes in full compliance with ASTM A312 standards. These pipes are manufactured from ultra-low carbon austenitic Cr-Ni-Mo stainless steel, formed through hot rolling or cold drawing processes, followed by solution annealing. The available size range includes outer diameters from DN200 to DN1200 (219 mm to 1219 mm) and above (custom sizes available), with wall thickness ranging from 3.0 mm to 30.0 mm, adjustable according to project requirements.
For large diameter 316L welded pipes, we place special emphasis on weld integrity. Advanced welding processes are combined with 100% ultrasonic testing (UT) and radiographic testing (RT) to minimize weld-related risks. In terms of geometry, ovality is strictly controlled, typically within ≤1% of the outer diameter, while precision beveling in accordance with ASME B16.25 ensures high-quality weld preparation during installation.
ASTM A312 TP 316L Stainless Steel Pipe Specifications
|
Sr. No. |
Material |
Size |
Sch. |
Specification |
|
1 |
ASTM A312 Stainless Steel 316L Seamless Pipe |
15 NB To 300 NB |
Sch. 5s Sch. 10s |
ASTM A-312 |
|
2 |
ASTM A312 Stainless Steel 316L Welded (ERW) Pipe |
15 NB To 300 NB |
Sch. 5s Sch. 10 |
ASTM A-312 |
|
3 |
ASTM A358 Stainless Steel 316L Welded (ERW) Pipe |
150 NB To 600 NB |
Sch. 5s Sch. 10s |
ASTM A-358 |
Tubing Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Tubing Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form : Round, Square, Rectangular, Hydraulic Etc.
Length : Single Random, Double Random & Cut Length.
Tubing End : Plain End, Beveled End, Treaded.
ASTM A312 TP316L Stainless Steel Pipe Sizes
Pipe sizes are based on ANSI B36.19, outside diameter ranges from NPS 1/8 inch to 30 Inch, that is 10.3 to 762 mm, DN 6 to DN 750, wall thickness ranges from Sch 5S to 80S.
Small diameter pipe, thin wall pipe and heavy wall pipe are available on request.
We should notice that pipe sizes under NPS 14 inch is not actual diameter, for example, NPS 8 inch, it is 219.08 mm, not 203.2 mm.
ASTM A312 TP316L Chemical Composition
| Grade | C | Si | Mn | Cr | Ni | Mo | S | P |
|---|---|---|---|---|---|---|---|---|
| TP316L | 0,035 | 1,0 | 2 | 16 – 18 | 10 – 15 | 2 – 3 | 0,03 | 0,045 |
ASTM A312 TP316L Mechanical Properties
| Grade | Tensile Strength(Mpa) | Yield Point(Mpa) | Elongation(%) |
|---|---|---|---|
| 316L | 485 | 170 | 35 |
All ASTM A312 TP316L large-diameter stainless steel pipes are produced under strict quality control procedures. Each pipe undergoes dimensional inspection, surface defect detection, PMI (Positive Material Identification), ultrasonic or eddy current testing, and hydrostatic pressure testing to ensure compliance with ASTM A312 standards. Only pipes that meet international quality standards are securely packaged for shipping, ensuring stable performance, corrosion resistance, and long service life.
Product Testing
Nondestructive Testing: 100% radiographic testing (RT) or ultrasonic testing (UT) in accordance with ASTM E164/E213; weld penetrant testing (PT) in accordance with ASTM E165
Pressure Testing: Hydrostatic testing at ≥1.5 times the design pressure in accordance with the general requirements of ASTM A450
Surface Quality: Ensure the absence of cracks, lack of fusion, and other defects, and the inner surface should have a smooth transition.
316L Stainless Steel Welded Pipes supplier
Packaging
Protection: 1.Inter paper available 2.PVC protecting film available
Export Packing: Waterproof paper, and steel strip packed. Standard Export,Seaworthy Package.Suit for all kinds of transport,or as required.
Customer visit and sign the order
