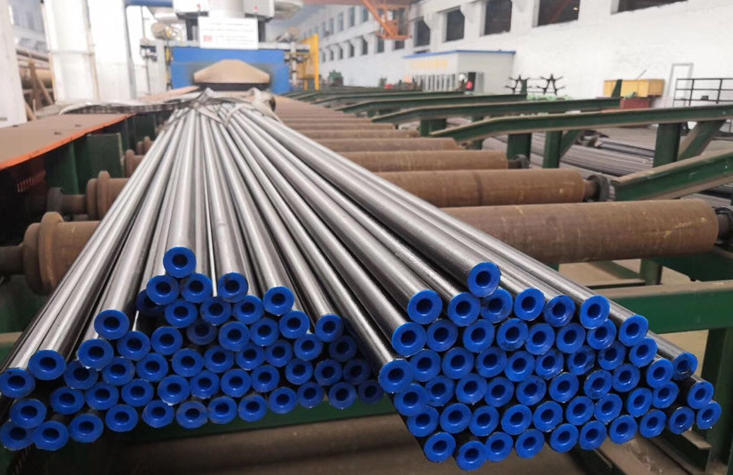

ASTM A213 Grade T5 Alloy Steel Seamless Tube Heat Exchanger Tube

What is ASTM A213 material?

ASTM A213 is a specification that covers seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes. These tubes are designed for use in high-temperature and corrosive environments, making them suitable for applications in power plants and petrochemical industries. The material is available in various grades, such as ferritic grades T5, T9, and T11, and austenitic grades including TP304.



​​ASTM A213 T5 seamless alloy tubes belong to the ferritic steel category under the ASTM A213 standard. They exhibit excellent heat resistance and corrosion resistance in hot petroleum media. ASTM A213 T5 alloy tubes contain multiple alloying elements including silicon, molybdenum, nickel, chromium, manganese, and vanadium. These elements contribute to enhanced wear resistance, toughness, and strength. The high thermal strength of A213 T5 cold-rolled alloy tubes makes them suitable for pressure equipment operating at temperatures up to 1000°C.​



What size is ASTM A213 tubing?

ASTM A213 Stainless Steel Tube in this grade is generally specified in sizes of 3.2mm, having an internal diameter of 127mm, with an outside diameter in the range of 0.4mm up to 12.7mm. They are generally divided into T5, T9, T11, T12, T22, and T91 types.



ASTM A213/ASME SA213 T5 Alloy Steel Seamless Tube Chemical Composition(%)

Grade	Chemical Composition(%)
	C	Mn	P	S	Si	Cr	Mo
A213 T5	≤0.15	0.30-0.60	≤0.025	≤0.025	≤0.50	4.00-6.00	0.45-0.65



ASTM A213/ASME SA213 T5 Alloy Steel Seamless Tube Mechanical & Physical Properties

Grade	Mechanical property
	Tensile Strength(MPa)	Yield Strength(MPa)	Elongation(%)	Hardness(HB)
A213 T5	≥415	≥205	30	≤163

Note: Mechanical property requirements do not apply to tubing smaller than 1⁄8 in. [3.2 mm] in inside diameter or thinner than 0.015 in. [0.4 mm] in thickness.

ASTM A213/ASME SA213 T5 Alloy Steel Seamless Tube Size Tolerance

Outside Diameter	OD Tolerance	WT Tolerance	Ovality Tolerance	Cut Length Tolerance
OD≤ 12, 7 mm	± 0, 13 mm	± 15 %	–	+ 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm	± 0, 13 mm	± 10 %	max, 1, 65 mm	+ 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm	± 0, 25 mm	± 10 %	max, 2, 41 mm	+ 4, 76 mm, – 0 mm

Trade Name	Grade	UNS #	Heater Tubes
1 1/4 Chrome	T11	K11597	A213 / SA213
2 1/4 Chrome	T22	K21590	A213 / SA213
5 Chrome	T5	K41545	A213 / SA213
9 Chrome	T9	K90941	A213 / SA213
T91	T91	K90901	A213 / SA213
T92	T92	K92460	A213 / SA213



Surface Condition
ASTM A213 T5 Seamless Ferritic alloy cold-finished steel tubes shall be free of scale and suitable for inspection. A slight amount of oxidation is not considered scale.
ASTM A213 T5 Seamless Ferritic alloy hot-finished steel tubes shall be free of loose scale and suitable for inspection.
Any special finish requirement be subject to agreement between the supplier and the purchaser.





Applications

Power Generation

Petrochemical Industry

Oil and Gas

Automotive

Aerospace

Heat Exchangers

Boilers



If you have a project need for ASTM A213 Grade T5 Alloy Steel Seamless Tube, we welcome your order. GNEE has a large inventory of popular products for you to choose from. We can process these products into a variety of practical forms, including seamless and welded. For detailed chemical composition and free samples, please contact our factory today. We offer competitive pricing and excellent service.Email: info@gneestainless.com
