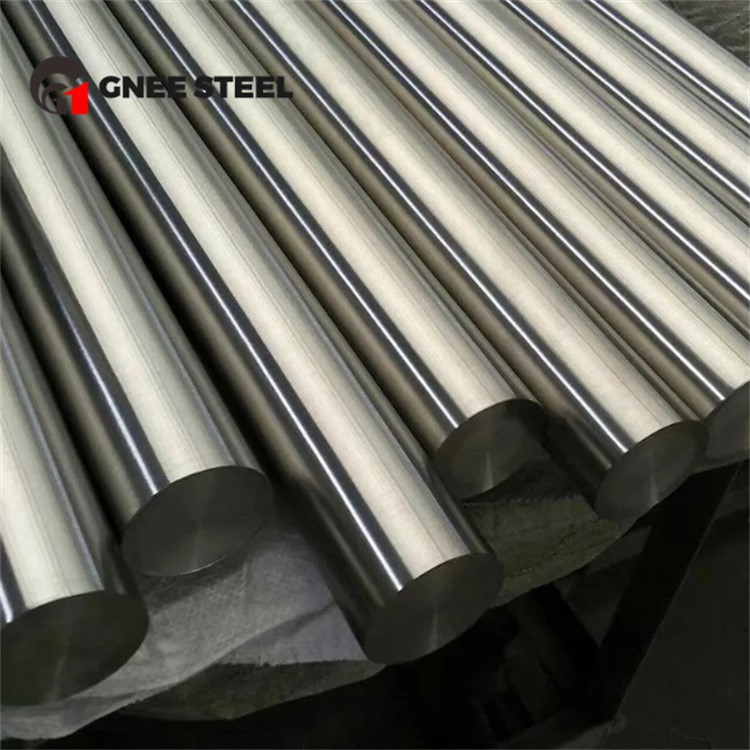

AISI 304 Stainless Steel Bright Bar
Leave a message
Are you in search of AISI 304 stainless steel bright bars that offer consistent quality and reliable delivery? GNEE is a leading supplier and manufacturer of stainless steel bright bars. Our production facilities are ISO 9001 certified, and every batch of products is accompanied by a Mill Test Certificate (MTC 3.1), as well as inspection reports issued by third-party agencies such as SGS or BV.
Our AISI 304 bright bars are formed using a cold-drawing process, achieving a dimensional tolerance precision of h9. Both ends of the bars are deburred or chamfered (at 30° or 45°) to effectively protect your machining tools and ensure operator safety. We also offer bars that have undergone annealing or solution treatment, effectively preventing work hardening and greatly facilitating subsequent machining operations. The material hardness is typically controlled within the range of HRB 80–90.
The surface roughness of our AISI 304 stainless steel bars is strictly controlled at Ra ≤ 0.8 μm (mirror-finish effects can be achieved upon customer request), and straightness is maintained within ≤ 0.5 mm/m. These bars exhibit exceptional machinability; not only do they significantly reduce tool wear, but they also produce cleaner, more manageable chips.
Stainless Steel 304 Round Bars & Rods Specification :
Dimensions : ASTM, ASME
Standard : ASTM A276, ASTM A479
Material Grade : Stainless Steel 304 (UNS S30400)
SS 304 Bright Bars : Outside Diameter in the range of 4mm to 100mm
Length : 1 to 6 Meters, Custom Cut Lengths
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Which dimensional tolerances are standard for 304 Bright Bars?
We follow the ISO 286-2 tolerance system. Common classes provided by Gnee include:
h9: Standard for centerless ground round bars.
h11: Standard for cold-drawn bars (Hex/Square).
h8: Ultra-precision for high-end shafting.
| Nominal Size (mm) | h8 Tolerance (μm) | h9 Tolerance (μm) | h11 Tolerance (μm) |
| 10 – 18 | 0 to -27 | 0 to -43 | 0 to -110 |
| 18 – 30 | 0 to -33 | 0 to -52 | 0 to -130 |
| 30 – 50 | 0 to -39 | 0 to -62 | 0 to -160 |
Can AISI 304 bright bars be welded?
Yes, they can. AISI 304 possesses excellent weldability. However, given that these are "bright bars," the heat-affected zone (HAZ) surrounding the weld seam will lose its original bright finish and dimensional precision. If the intended application involves extensive welding, it is recommended to opt for 304L (the low-carbon variant) to prevent sensitization and intergranular corrosion.
Price List of Stainless Steel 304 Bars/Rods
Price of ASTM A276 SS 304 Bright Bars and Rods : US $1.5-5 / Kilogram
Price of ASME SA276 SS 304 Bright Round Bars and Rods : US $1300-3000 / Ton
Price of Stainless Steel 304 Bright Bars & Rods : US $1.1-4.5 / Kilogram
If you require AISI 304 bright bars that seamlessly integrate with your CNC turning, Swiss-type automatic lathe operations, or automated production lines-and seek the assurance of officially certified material quality-please contact GNEE immediately. We will provide you with the latest inventory updates, detailed specifications, and highly competitive pricing proposals.
Click to get the latest price.
GNEE is a reliable supplier of 304 stainless steel rods, typically in diameters from Ø6 mm to Ø450 mm, and available in solution treated or solution and age treated conditions. All 304 stainless steel rods are produced in accordance with ASTM A276, ASTM A479 standards and can be provided with EN 10204 3.1 certificates.

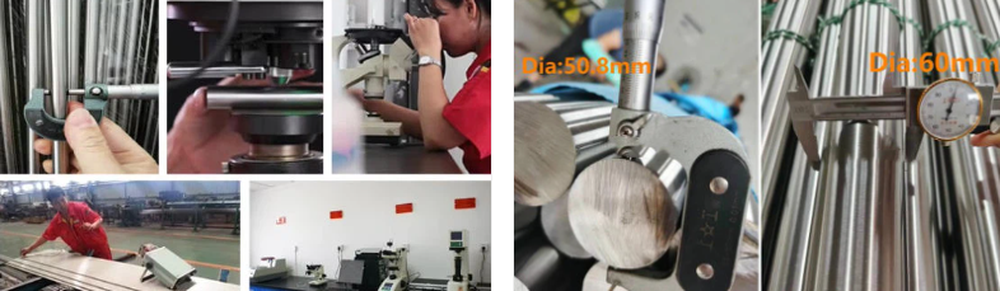

SS 304 Round Bar Quality Inspection

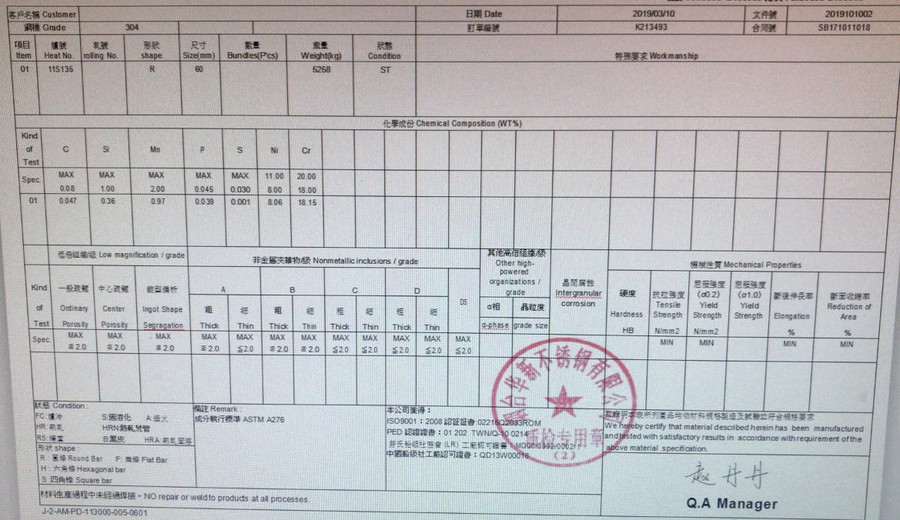

Testing and Documentation: Factory Test Certificate, EN 10204 3.1, Chemical Report, Mechanical Report, Destructive Test Report, NDT Report, PMI Test Report, Visual Inspection Report, Third Party Inspection Report, NABL Certified Laboratory Report.

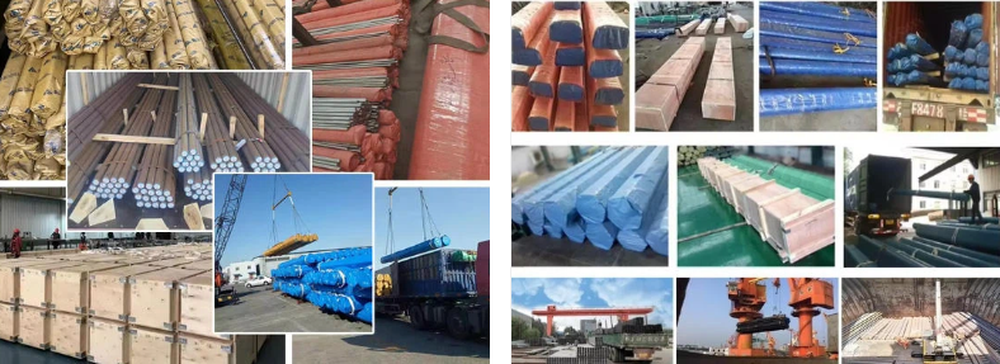

In terms of transportation and packaging, round rods are packed with anti-rust oil, plastic packaging and wooden boxes or steel strapping suitable for sea transportation. Spot 304 stainless steel rods can be shipped within 7-10 days, customized sizes can be shipped within 15-25 days, and EN 10204 3.1 certificates can be provided.
