ASTM A182 F51, F53, F60 Duplex Steel Tubesheet
Leave a message
If you are looking for high-strength, highly corrosion-resistant, and chloride stress corrosion cracking resistant duplex stainless steel tubesheets, GNEE's ASTM A182 F51 / F53 / F60 duplex stainless steel tubesheets are your best choice. Our products are widely used in marine engineering, chemical equipment, petrochemical plants, heat exchangers, and pressure vessels, and comply with international standards and possess authoritative certifications such as ISO, SGS, and BV.
High-strength ASTM A182 F51 F53 tubesheet Material
| Grade | UNS | Structure | Key Characteristics |
|---|---|---|---|
| F51 | S31803 | Duplex (50% ferrite / 50% austenite) | Excellent chloride pitting resistance, high strength |
| F53 | S32750 | Super duplex | Superior corrosion resistance, higher yield strength, best for harsh environments |
| F60 | S32760 | Super duplex | Maximum corrosion resistance and strength, suitable for severe chemical environments |
F53 / F60 duplex stainless steel tubesheet specifications
| Property | F51 | F53 | F60 |
|---|---|---|---|
| UNS | S31803 | S32750 | S32760 |
| Density (g/cm³) | 7.8 | 7.8 | 7.8 |
| Tensile Strength (MPa) | 620–850 | 750–950 | 780–1000 |
| Yield Strength (MPa) | 450 | 550 | 600 |
| Elongation (%) | ≥25 | ≥20 | ≥20 |
| Hardness (HB) | 280 | 300 | 320 |
| Corrosion Resistance | Excellent in chloride, seawater, acids | Superior in chloride and acid | Maximum in chloride, acid, H2S |
What is the difference between F51, F53, and F60 duplex steel?
F51, F60, and F53 are ASTM A182 forged duplex stainless steels used for high-strength, corrosion-resistant components. F51 (22Cr, UNS S31803) is the standard 22% Cr grade, while F60 (22Cr, UNS S32205) is a tighter-composition version of F51 with better corrosion resistance. F53 (25Cr, UNS S32750) is a super duplex, offering superior pitting resistance and strength.
Applications
Desalination Plants (Seawater Equipment)
Chemical Process Industry
Offshore Oil & Gas Platforms

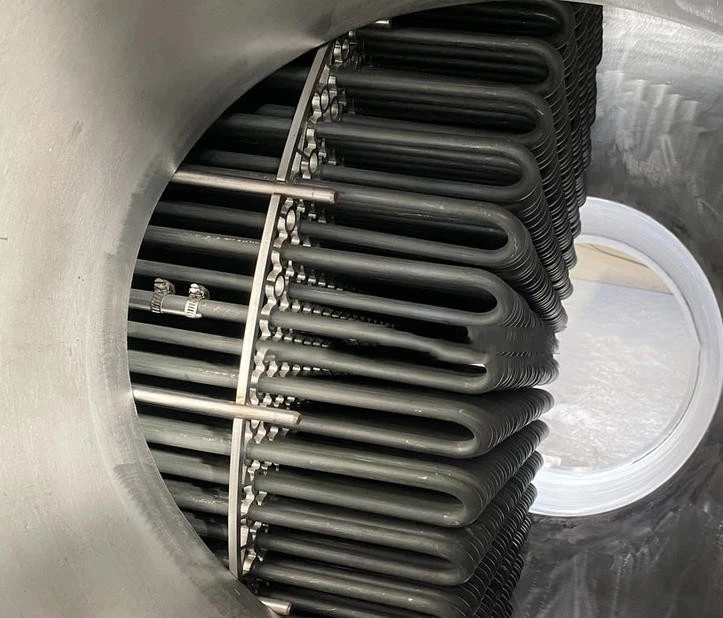

Power Generation Heat Exchangers
Pulp and Paper Industry
Duplex stainless steel tubesheet supplier
Large Stock Available:F51, F53, F60, and F55 duplex tubesheets in ready stock with fast shipping.
Custom Machining Service:CNC-drilled tube holes, groove cutting, and surface polishing as per drawing.
Full Certification Support:Includes MTC, ultrasonic test reports, and third-party inspection (SGS, BV, TUV).
Global Export Experience:Supplying duplex steel products to over 60 countries, including Europe, the Middle East, and Southeast Asia.
FAQ
Q: Can ASTM A182 F51/F53/F60 tubesheets be used in seawater applications?
Yes, all three grades are highly resistant to pitting and crevice corrosion in seawater, with F53 and F60 preferred for long-term offshore use.
Q: What is the maximum service temperature for these tubesheets?
F51: up to 300°C
F53 / F60: up to 350°C in continuous operation
Q: Are these tubesheets compatible with standard 316 / 316L stainless steel tubes?
Yes, but mechanical and galvanic considerations should be checked in design. Duplex steels have higher strength.
Q: What certifications are available from GNEE?
Mill Test Certificates (EN 10204 3.1 / 3.2)
ISO9001, SGS, BV inspection reports
PED / ASME compliance on request
